La210p&La18p Dual 10 Inch Active Self-Powered Line Array PA Speaker System Cabinet Loudspeaker Box

Product Description

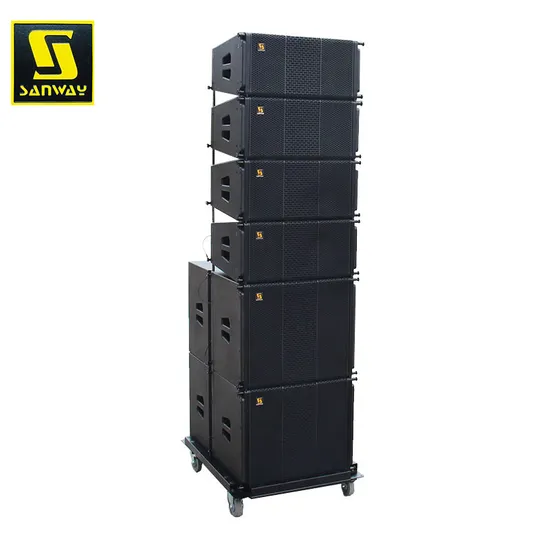

LA210P&LA18P Dual 10 Inch Active Line Array PA Speaker System
Compact self-powered line array system
2x10 " neodymium LF+1x3" neodymium HF active top pa speaker
1x18" neodymium horn-loaded active subwoofer
Built-in DSP plate amplifier with multi-function
Description

LA210P and LA18P active line array pa speaker system are designed for medium outdoor or indoor festivals, corporate events, houses of worship, performing arts centers, and theaters.

LA210P is a compact high SPL line array box, which consists of 2 10-inch neodymium woofers and one 3-inch neodymium compression driver built-in two channel plate module with Preset DSP Data.

To make a complete active line array speaker system, we have LA18P to couple with LA210P. This is a single 18-inch horn-loaded powered subwoofer with built-in DSP plate amplifier. The inside 18 inch neodymium subwoofer with dual bass-reflex tuned enclosure, could deliver loud and efficient 137dB/m very high SPL

The latest class d amplifier technology is incorporated in this system ensuring ultra quiet, highly efficient and low distortion output enhanced by a fully programmable DSP for real time operation according to different environments and music styles.

Features

Compact self-powered line array system
2x10 " neodymium LF+1x3" neodymium HF active top pa speaker
1x18" neodymium horn-loaded active subwoofer
Built-in DSP plate amplifier with multi-function
Integrated rigging system for stacked and flown configurations
Russian birch plywood with polyurea coating

Application

1. Indoor & Outdoor Live Sound
2. Medium Festivals
3. Corporate Events
4. Houses of Worship
5. Performing Arts Centers
6. Theaters
Specification

Model	LA210P powered dual 10-inch top line array speaker
Drivers	2 x 10" Neo LF / 1 x 3" Neo HF
Frequency range	55Hz ~ 18 kHz (±3 dB )
Power Handling	1000W LF; 300W HF
Impedance	8 Ohms LF; 8Ohms HF
Coverage range (h x v)	80° x 12°
Sensitivity 1W/1m	103dB
SPL max / 1m / peak	140 dB
Active plate amplifier	Sanway 2 CH DSP plate amplifier
DSP function	MUTE, Polarity, Gain, Delay, Limiter, Mixer, EQ, X-OVER
Dimensions (h x w x d)	283 × 600 × 455 mm
Net Weight	27 kg
Finish	Russian Birch Plywood and Polyurea Paint

Model	LA18P 18"Horn-loaded powered line array subwoofer
Driver	1x18"
Frequency range	30-150Hz
Power Handling	2400W
Impedance	8 ohms
Sensitivity 1 W/1M	101dB
SPL max/1m/peak	137dB
Active plate amplifier	Sanway one channel plate amplifier with DSP
DSP function	MUTE, Polarity, Gain, Delay, Limiter, Mixer, EQ, X-OVER
Dimensions	600 × 500 × 800 mm
Weight	47kg
Finish	Russian Birch Plywood and Polyurea Paint
