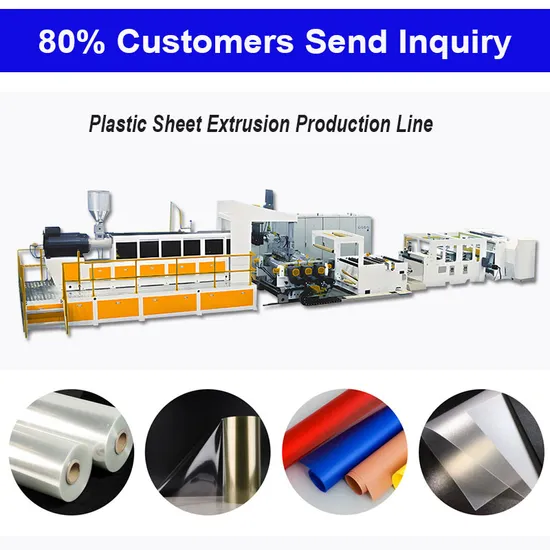

Manufacturer Plastic Pet Sheet Extrusion Production Line PP PS Sheet Extrusion Machine PLA Sheet Extruder

Product Description

Taizhang Machinery has 15 years experience of providing solutions and manufacturing of plastic sheet extrusion production line, our sheet extrusion lines are widely used for plastic sheet extrusion of PET, PP, PS, PE, PLA, PVC,etc. Based on customer requirements, taizhang also provide single layer sheet extrusion machine, double-layer co-extruded sheet production line, multi-layer co-extruded sheet production line.
Manufacturer Plastic Pet Sheet Extrusion Line PP PS Sheet Extrusion Machine PLA Sheet Extruder

Product Description

Discover the advanced PLA/PP/PS Sheet Film Making Machine from Dongguan Taizhang Machinery Co., Ltd. This machine is designed to meet all your PET Sheet Production Line needs with precision and efficiency.
Plastic Extrusion Machinery for Sheet Making Explore our range of high-quality plastic sheet extrusion machines for transparent, polypropylene, PET, PS, PP, and PLA sheet production.

1. Conditions of Use:	380V/3P/50Hz
2. production material:	PET pellets and regularly broken pieces
3. Sheet material thickness:	Thickness:δ=0.15-1.5mm
4.Finished sheet width:	800mm
5.Extrusion output:	300-350Kg/h

Plastic Extrusion Machine for Sheet Making Explore our Plastic Sheet Extrusion Machine for transparent, polypropylene, PET, PS, PP, and PLA sheet production. High-quality equipment for various plastic film manufacturing needs.

1	120/38 exhaust single screw extruder	1 set	Include	120 exhaust extrusion host	1 set
				Two-point automatic suction machine	1 set
				Host quantitative feeder	2 set
				Masterbatch feeding machine	2 set
				Vacuuming system	1 set
2	Hydraulic screen changer	1set	Include	Double column screen changer	1 set
				Hydraulic system	1 set
3	Melt metering pump	1 set	Include	Melt pump	1 set
				flow channel	1 set
				Pressure Sensor	3 set
				Cardan shaft	1 set
				Transmission system	1 set
4	Mold	1 set			1 set
5	Three-roller calender	1 set	Include	Three-roller calender	1 set
				Hydraulic system	1 set
6	Roller temperature control system	1 set		Three-stage roller temperature control system	1 set
7	Cooling shaping bracket	1 set			1 set
8	Waste edge trimming device + waste edge winding device (both sides)	1 set	Include	Waste edge trimming device	1 set
				Waste edge winding device	1 set
9	Silicone oil coating machine + dryer (double-sided)	1set	Include	Silicone oil coating machine	1 set
				Dryer	1 set
10	Traction device	1 set			1 set
11	Dual station winding machine	1 set			1 set
12	Electrical control system	1 set			1 set

PET Sheet Extrusion Machine by Dongguan Taizhang Machinery Co., Ltd.
Advantages of the PET Sheet Extrusion Machine
The single screw design maintains original toughness for high-quality sheets.
Equipped with an exhaust device to remove moisture, saving energy and producing transparent sheets.
Vacuum device ensures clean water extraction for lower defective product rates.
Automatic material suction system reduces manual work and ensures continuous material supply.
Quantitative feeder prevents excessive feeding for smoother operations.
Cylindrical double-station screen changer minimizes material leakage.
Imported pressure sensor for precise synchronization of the melt metering pump.
Servo motor-driven three-roller calender for precise sheet forming.
Servo motor-driven traction device and winding machine with automatic meter counting.
Fully digital high-precision control system for efficient operation.
Experience top-notch quality and efficiency with the PET Sheet Extrusion Machine from Dongguan Taizhang Machinery Co., Ltd.
Features

Mould
The mold is made of alloy steel, and the flow channel is chrome-plated and polished, allowing the mold width to be adjusted without stopping the machine.
Duplex Sheet Winder
The dual station winding machine is equipped with automatic meter meter , You can also customize a larger volume weight , and the larger diameter can be collected by 1.15 meters . It also specially developed an automatic winding machine that can collect 2 rolls at the same time to achieve high production capacity.
Extruders
It is derived from Taiwan's technology design free dryin and exhaust type planet type screw,which has the advantages of mandatory feeding,high speed,high production capacity , and high quality . It is suitable for 80% return,maintaining the original toughness of the original film , and it can also be suitable for PP HIPS PLA.
Three-roller calender

The three-roller light machine is a horizontal or vertical or 45 degree inclined design.The thickness of the sheet is automated adjustment system,The machanical roller has anti-collision protection function.The use of electronic hand wheel operations to implement the sheet specifications,which are transformed quickly and relaxed,and no tedious operations are required.The accuracy of slices is as high as 0.005mm.
Detailed Photos
Technical Parameter

Model/Parameters	Complicable Material	Screw specifications	Sheet thickness (mm)	Sheet width	Maximum extrusion output (kg/h)	Installed Power (KW)
TZS-75PET	PET,PLA	Φ75	0.2-1.6	⩽800	450-550	315
TZS-85PET	PET,PLA	Φ85	0.2-1.6	⩽1000	600-800	380
TZS-95PET	PET,PLA	Φ92	0.2-1.6	⩽950	1000-1200	495
TZS-105PET	PET,PLA	Φ100	0.2-1.6	⩽950	1200-1500	505
TZS85-1200	PET/PLA	Φ85	0.2-1.6	⩽800	400-500	275

Factory Main Products :
1.PET co-extruding machine line/pet coextruding machine/extruding machine/pet extrusion machine line
2.plastic vacuum forming machine/plastic cup thermoforming machine/Thermoforming-Machine
3.plastic crusher machine/plastic crusher/plastic bottle crusher/plastic crushing machine
Relative Machines
Plastic Sheet Extrusion Machines
Taizhang provide a variety of plastic sheet extrusion production line solution, such as PET, PP, PE, PS, ABS, PC, PMMA, PLA, etc. Widely used in plastic sheet thermoforming industry.
Plastic Sheet Thermoforming Machines:
Taizhang provide professional plastic sheet thermoforming production solution, widely suitbale for produciton of plastic food container, fruit egg tray, seedling tray, electronic tray, plastic cup, lid, plate, flowerpot,etc.
Plastic Cup Making Machine
Taizhang pisposable cup making machines,they are widely
used for plastic milk tea cups, coffee cups, disposable watercups, fast food box,plastic lid,fruit box,fresh food tray,etc.
Scope of application:
FAQ
Q:What's your delivery date?
A:Usually finish the production within 45 days after received your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T with 30% in advance and 70% before shipment. Also we could accept L/C at sight.
Q: How many days will the finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from the day when finished installation.
Q: How could we do after one year warranty period?
A: We provide 1 year warranty. Within the warranty period, we provide free machine parts and repair service but not including shipping cost if it is not caused by human factors. After 1 year, we provide lifetime service with affordable charge.
Q: How many worker do we need to operate those machines?
A: Usually one machine needs 1-2 operators.
Q: Can you supply raw materials?
A: In addition to producing blister machines, we also produce plastic sheet extruders. If you think the price is right, you can buy our machine to produce sheets. If you do not want to purchase a sheet machine, we can also help you order raw materials and arrange machine shipment.
