Air Refresher / Spray Paint /Deodorants Spray/ Spray Insecticide/ Hydrating Liquid Aerosol Tin Can Making Machine Line (High Pressure Leak Tester)

Product Description

Customer's needs and satisfaction
is what we are constantly creating and pursuing

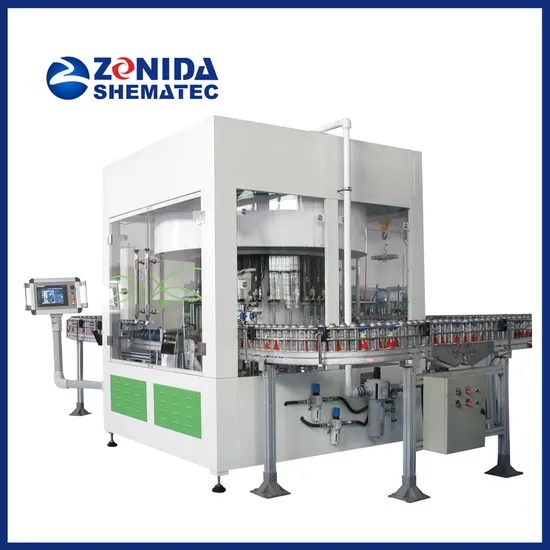

This leak tester is used to detect whether there is leak on food cans and beverage cans. With rotary design, empty can is fed into vacuum testing zone continuously. Qualified cans will be sent to next process, but defective cans rejected. HMI shows real-time inspection.
3 Piece Can Production Line
Technical Parameters:
Leak Tester

Testing Object	Empty Can
Can Diameter	Ф99-Ф153mm
Can Height	H35-260mm
Testing Mode	Vacuum
Testing Accuracy	0.08mm
MAX. Speed	700cp
No.of Working Head	20-60

Duplex Slitter

Max. Cutting Speed	1130mm/s
Tolerance	±0.05mm
Max. Sheet Feeding Speed	40 spm
Max. Sheet Size	1140mm×1140mm
Min. Sheet Size	500mm×700mm
Max. Sheet Thickness	0.4mm
Total Power	6kW
Power Supply	Three Phase Voltage 380V 50HZ
Weight	6000kg
Overall Dimension(L×W×H)	6970×3000×1700mm

Welder

Max. Welding Speed	85m/min
Max. Output Capacity	800cpm (Depends on Can Height)
Overlap	0.3-0.4mm
Can Diameter	Ф52-Ф153mm
Can Height	H70-320mm
Sheet Thickness	0.16-0.3mm
Welding Frequency	200-1000HZ
Total power	150kW

Lacquering Machine

Capacity	Up to 20m/min
Air Consumption	0.6Mpa, 20L/min
Power	0.5 kW

Induction Drying Oven

Length of Heater	2 Meter
Max. No. of Heater:	12
Heater Coil	Multi-coil
Input Voltage:	220V ±10%
Output Power	15kW
Cooling Water Pressure	0.05-0.25MPa
Induction Distance	5-20mm
Induction Width	35-40mm

Four-Station Combiner

Aerosol Can	Necking-Flanging-Seaming-Seaming
Double Necking Food can	Necking-Necking-Flanging- Seaming
Triple Necking Food Can	Necking-Necking-Necking-Flanging
Output Capacity	650cpm (Depends on Can Size)
No. of Working Head	6 -10
Sheet Thickness	0.16-0.18mm
Temper	T1 - T4, DR8 or DR9

-Original manufacturer with 18-year professional can making experience.
-Strict Quality Controlling System and Excellent Management Team.
-Customized Equipments according to customer' requirements, high quality with competitive price.
-Abundant export experience: our products have been exported to Indonesia, Malaysia, Vietnam, Singapore,
Iran, Turkey, India, Poland, Italy, etc.
-Superior after-sale service: Engineers available to service machinery overseas.
