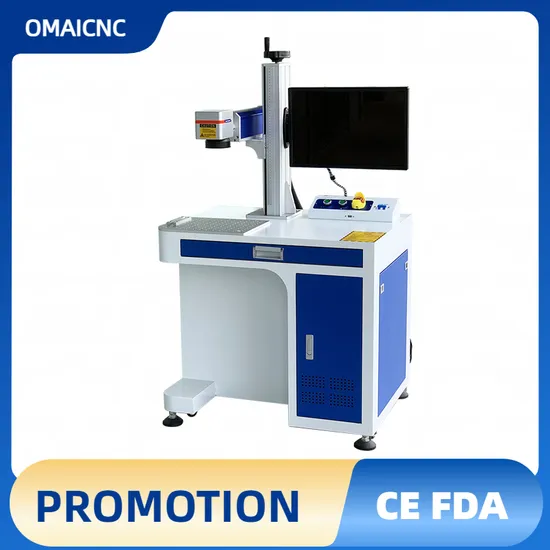

Fiber Laser Marking Machine for Jewelry Metal Portable Desktop Model 30W

Product Description

Fiber Laser Marking Machine for Jewelry Metal Portable Desktop Model 30W
Details Pictures:
Product Parameters
Parameters:

Machine model	OM-F20A	OM-F30A	OM-F50A	OM-F100A
Wave length of laser	1064nm
Laser repetition frequency	20kHz~100kHz
Laser power	20W	30W	50W	100W
Marking scope	110*110 /150*150/175*175/200*200mm/300*300/400*400mm
Laser sources	Raycus/Max/JPT
Laser Head	Scanning head
The minimum focus facula diameter	20μm
Minimal character	0.01mm
Marking speed	7000mm/s
Repeated accuracy	0.0025mm
Cooling ways	Air Cooling
Power supply	110V/220V/, 50/60Hz
Process Material	All kinds of metal and part of Non-metal Materials
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Package	Standard export wood case

Detailed Photos
Key Features:
1. Excellent Beam Quality: Provides precise and consistent results.
2. High Efficiency: Ensures optimal performance for demanding applications.
3. Extended Lifespan: Built to last, offering reliable long-term use.
4. Maintenance-Free: Operates smoothly without the need for regular maintenance.
5. Compact Design: Small footprint, ideal for various workspaces.
6. No Consumables: Eliminates ongoing material costs.
7. Low Power Consumption: Minimal energy usage with no additional running costs.
Main Parts: 1. Fiber Laser Source: MAX brand with over 100,000 hours lifespan. Raycus, IPG, and JPT options are available.
2. Control Board: Designed for ease of operation, user-friendly for all operators.
3. F-Theta Lens: Offers stability with wavelength-specific options (Sino or Huayuan), and a choice of field sizes: 110mm, 150mm, 200mm, and 300mm.
4. Galvanometer Scanning Lens: Provides high-speed scanning (<0.7ms) with precision marking capabilities.
5. Lifting Shaft: Enables precise adjustment of marking height.
6. Industrial-Grade Extended Optical Path: Reinforces linear optical stability for consistent laser output.
7. Aluminum Table: Features standard positioning holes for quick and adjustable positioning.
8. Double Red Dot Positioning: Facilitates fast and easy focal length adjustment.
9. Control System: EZCAD, known for its stable performance and reliability, simplifies complex functions to ensure high operational stability.
10. Software: English version is standard, and other language versions are available upon request.
Optional Components:
Rotary Options:
Ring Marking Model: Specifically designed for marking on rings.
Standard Model: Available with 50mm and 80mm diameter options, suitable for broader marking applications.
Application of Laser Ring Engraving Machine: The fiber laser marking machine is versatile, handling both metals and select non-metals with precision:
Metals: Ideal for engraving gold, silver, stainless steel, brass, aluminum, steel, iron, and more. Non-Metals: Suitable for marking materials like ABS, nylon, PES, PVC, and Makrolon. This flexibility makes it perfect for a variety of applications in both industrial and decorative contexts.
Packaging & Shipping
Package and Delivery:
1. Anti-Collision Protection: Each part of the machine is cushioned with soft, shock-absorbent materials, primarily pearl wool, to protect against impact.
2. Full-Film Wrapping: The machine is completely wrapped in film to prevent moisture and dust exposure.
3. Fumigated Wooden Crate: The crate is treated to ensure safe, compliant shipping.
4. Reinforced Iron Base: A solid iron base is built into the wooden crate for stable support and easy handling during transport. Packing List:1. Protective Goggles - Essential for eye protection during operation.
2. Power Cable - Supplies power to the machine.
3. Foot Switch - Enables hands-free operation control.
4. Flash Drive - Includes software and English user manual.
5. Positioning Bars - Helps accurately position materials.
6. Tool Set - Basic tools for maintenance and adjustments.
7. Laser Test Paper - For testing laser precision and output.
8. Ruler - Assists with material alignment and measurement.
9. Spare Buttons - Replacement buttons for quick repairs. After Sales Service
Warranty and After-Sales Service:
1. Warranty Period: 2 years for the entire machine and 2 years for the fiber laser source.
2. Lifelong Technical Support: Available online or via email.
3. 24/7 Online Assistance: Our team is ready to help you effectively use our machine at any time.
4. Overseas Support: We offer training, installation, and operational assistance if needed.
5. Free Training at Our Facility: You are welcome to visit us for hands-on training.
6. Certification: Our machines are produced in compliance with CE and FDA standards.
Customer Feedback:
Certifications
Certifications:
FAQ:
1. How can I choose the most suitable machine?
Please let us know the type of work you plan to do, the primary materials you'll use, and whether you'll be engraving or cutting. If cutting, what is the maximum cutting thickness required? Additionally, let us know the preferred working area size.
2. If parts have issues during the warranty period, will your company repair or replace them?
Yes, we will. Simply send the faulty part back to us, and we'll repair and return it to you free of charge within the warranty period. If it cannot be repaired, we'll send you a new part. (Note: Does not cover consumables or damages caused by misuse.)
3. Is technical support available after we receive the machine?
Absolutely. Our technicians are available 24/7 to assist with installation and provide free training once you receive the machine
4. Can you deliver the machine to my door?
For large, heavy machines, we usually quote a CIF price and ship to your nearest port. However, door-to-door delivery is available under DDU terms, which includes shipping, customs clearance, and delivery to your location.
For smaller machines, we can provide a quote for door-to-door express shipping (via DHL, TNT, FedEx), with delivery in approximately 5-7 days. 5. Can I purchase spare parts from your company in the future?
Yes, we recommend purchasing some spare parts along with the machine to save on shipping costs.
6. How long is the delivery time?
Standard machines are typically shipped within 3-7 days, while customized machines may require 10-15 days.
Our company:

Jinan Omai CNC Machinery Co., Ltd. stands as a leading manufacturer, specializing in a diverse range of laser technologies, including laser cleaning machines, welding machines, fiber laser cutting, and marking machines. With a decade of industry expertise, our proficient engineers, skilled assembly and testing teams, and dedicated after-sales support ensure superior quality products and services. We accommodate small batch orders, offer OEM and ODM services, and provide bespoke solutions crafted to your unique specifications. Our esteemed global clientele spans across the USA, UK, Taiwan, South Korea, Malaysia, Thailand, Australia, Brazil, Russia, South Africa, and beyond.
