Wfj Series No Screen 100um Air Classifier Mill for Ultra Mushroom Powder Grinder Pulverizer

Product Description

Product Description
Welcome to Jiangyin Haixiang Machinery Co.,Ltd
We specialize in this industy have more than 10 years.
We have professional engineer and sales team.

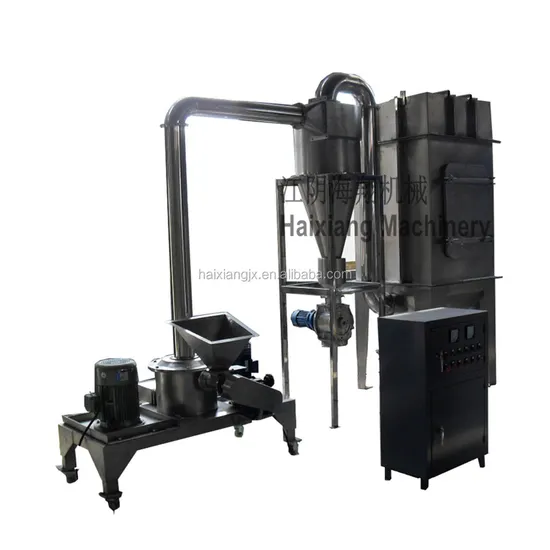

WFJ-15/30/60 air classifier mill
Main uses:

This machine is composed of three parts, the host, auxiliary electric control box, with a winnowing, no mesh or screen , uniform granule size and other properties, production process of continuous. The machine reaches the international advanced level, which are widely used in foodstuff.

Working principle.

Material is fed into the crushing chamber through screw conveyor, the high-speed rotary blade shear pulverization, by means of negative pressure air transport the material into the cyclone separator, bag type dust collector, from material to product requirements.

Model	WFJ-15	WFJ-20	30	60	80	110
Prodtction Capacity (kg/h)	10~200	20~300	30-800	50-1200	100-1200	200-3000
Size of input granules(mm)	<10	<12	~10	~10	~15	~20
Size of output granules(mesh)	80~320	80~320	60-450 (adjustable)	60-450 (adjustable)	60-450 (adjustable)	60-450 (adjustable)
Total Power(KW)	13.5	17.5	46	84.15	145	230
Main running speed	~6000	~4800	3800	2800	2200	1480
Weight(kg)	850	1250	2800	4500	9500	16000
Overall Size(L×W×H)	4200×1200×2700	4700×1250×2900	6640×1300×3960	7500×2300×4530	9800×2600×6800	13000×3500×7200

Packaging & Shipping
Company Information
about us
FAQ
• Which payment terms can we accept?
• Normally we accept T/T term, sometimes Western union or others for old client.
On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.

• I'm not sure if this machine can deal with our product?
• Products like this will be OK: , small granule diameter less than 6mm, such as sugar, salt, rice

• One model can be available for various mesh?
• Yes, one model can choose different screen stencil for meeting various mesh.

• Whether the grinder is easy to get heating?
• Actually, our machine inside is with large air volume, evenly, the air volume can inject water, so not easy to get heating.
.
• As a oversea buyer, I wonder if you could send us engineer for installation and maintenance?
• The machines are test without problem before shipping. Just connect to power the machine will work. We will always do our best to solve your problem whatever in one year warranty or not, and you need not to pay for unnecessary in reasonable price.

• I worry about there is a difference of supply voltage between our countries.
• Usually our power supply is 3p 220/415v 50/60HZ, and we will confirm your supply voltage when we are going on business .
