High Quality 37m Concrete Truck Boom Pump Price for Sale
| US$92,000.00-105,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
38X-5RZ-2
Type
Concrete Pump
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
100cbm/H
Feeding Height
1580mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Original Color
Max. Speed
90km/H
Max. Power
279kw
Overall Weight
24500kg
Reach Height
29.6m
Emission Standard
Eruo III
Reach Depth
18m
Transport Package
Nude Package
Specification
12000*2500*3900mm
Trademark
China Brand
Origin
China
HS Code
84134000
Production Capacity
100units/Month
Product Description

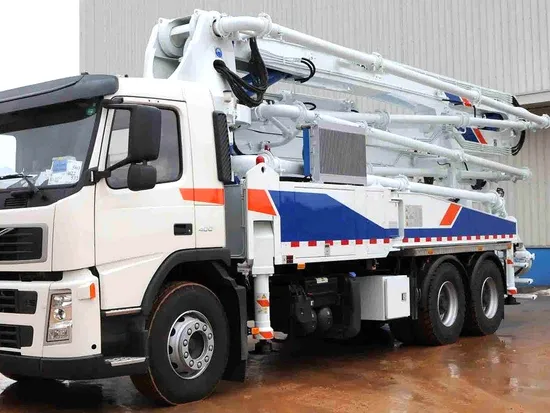

Product Description38m China new concrete pump truck
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More fficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
* Large diameter (260 mm) Φ, large displacement (100 / hour) pumping systems.
* Material absorption can reach more than 85%.
*Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
Detailed Photos
Product Parameters
| Model | Unit | 38X-5RZ-2 | |
| Pump Unit | Maximum theorical output | m3/h | 100/60 |
| Maximum pressure on concrete | bar | 80/150 | |
| Conc. cylinders (diam. x stroke) | mm | 230x1650 | |
| Concrete hopper capacity | L | 550 | |
| Hydraulic circuit | | Open | |
| Boom Section | Maximum vertical reach | m | 37.1 |
| Maximum horizontal distance | m | 32.8 | |
| Minimum unfolding height | m | 8 | |
| Section numbers | | 5 | |
| Rotating angle | | ±270° | |
| End hose lenght | m | 3 | |
