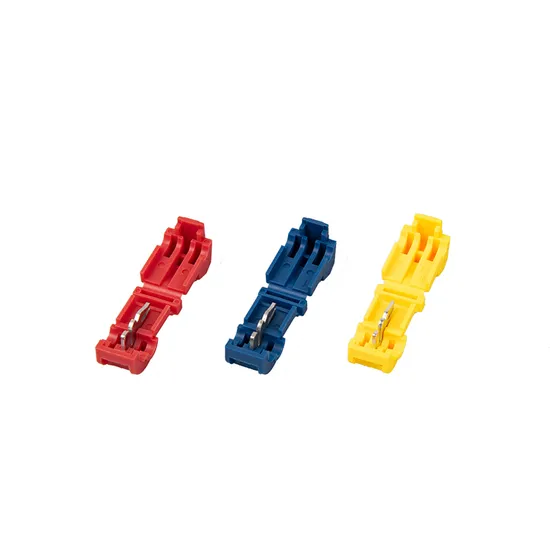

Red Blue Yellow Nylon Quick Splice Scotch Lock T Tap Wire Quick Fast Splice Electrical Connector

Product Description

Product Description

Quick Splice Connector (KW)
ITEM NO	Insulated : PP	Thickness : 0.4mm		Material : Brass
	Dimension (mm)		Cable Size		color
	L	W	A.W.G	mm²
KW -10	38.0	10.0	22-18	0.5-1.0	Red
KW -11	38.0	10.0	18-14	1.0-2.5	Blue
KW -12	38.0	10.0	12-10	4-6	Yellow

Characteristics
Heat resistant:-20~100ºC
Without previous stripping, pass through connections as well as pigtail and tap splices
The insulation with locking ensured the reliability of connection
NYLON-FULLY INSULATED DOUBLE CRIMP MALE DISCONNECTORMax current:10A material:Brass insulating material:nylon

ITEM NO		Connecting spec.	Dimension(mm)						Diagram	Cable size (mm)	Color
			W	F	L	B	Dφ	Cφ
FDFNY	1.25-250	0.8×6.35	6.6	7.3	22.0	12.0	4.5	1.7	1	22-16 A.W.G 0.5-1.5 mm²	Red
MDFNY	1.25-250		6.35	7.7	23.0	11.0	4.5	1.7	2

Max current:15A material:Brass insulating material:nylon

ITEM NO	Connecting spec.	Dimension(mm)						Diagram	Cable size (mm)	Color
		W	F	L	B	Dφ	Cφ
FDFNY2-250	0.8×6.35	6.6	7.3	23.0	12.0	4.5	2.3	1	16-14 A.W.G 1.5-2.5 mm²	Blue
MDFNY2-250		6.35	7.7	24.0	11.0	4.5	2.3	2

Max current:24A material:Brass insulating material:nylon

ITEM NO		Connecting spec.		Dimension(mm)						Diagram	Cable size (mm)	Color
				W	F	L	B	Dφ	Cφ
FDFNY 5.5-250		0.8×6.35		6.6	7.3	23.0	12.0	5.0	3.4	1	12-10 A.W.G 4-6 mm²	Yellow
MDFNY5.5-250				6.35	7.7	24.0	11.0	5.0	3.4	2

WIREFY T-TAP ELECTRICAL CONNECTOR
will tap into any wirewithout needing to cutstrip or solder

PARD CODE	Color	Wire range	Max current	Unit
T1	Red	0.5-1.5mm²	10A	set
T2	Blue	1.5-2.5mm²	15A	set
T3	Yellow	2.5-4mm²	25A	set

Easy Crimp Installation:Our push electrical connectors are designed for a simple, secure crimp, reducing installation time.
Quick Splice Wire Terminal:Effortlessly connect wires with our quick splice terminals, ensuring a secure, reliable connection.
Waterproof Connector:Our weatherproof connectors provide a watertight seal, safeguarding your electrical systems.
Versatile Wire Range:Accommodates wires from 0.5mm² to 4.0mm², making it suitable for various electrical projects. How to Use
