Factory Direct Sale Heavy Type Middle Bridge Edge Cutting Machine for Granite

Product Description

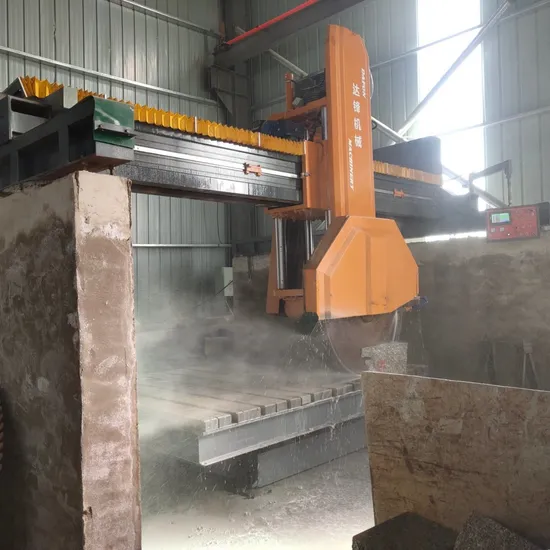

Factory direct sale heavy type middle bridge edge cutting machine for granite
Machine Features:
This machine adopts PLC programmable control system, main-machine integration of touch screen operation interface, with high precision rotary encoder and the infrared liner, cutting left and right adopts the frequency converter to control the speed, speed can be adjusted according to the stone material, lift up and down adopts hydraulic, the high speed moving parts adopt imported high-quality spare parts, so it cutting with high efficiency, high cutting precision, high stability, easy and flexible operation etc, especially suitable for the high value of large specifications of granite, marble slabs cutting.
Technical parameters:

Model	DF-1200
Diameter of blade	500-1200mm
Max.working size	3600*2500*450mm
Max.vertical stroke	600mm
Worktable size	3000*2000mm
Worktable rotating degree	0-90°
Water consumption	4m3/h
Main motor power	22kw
Total power	30kw
Overall dimension(L*W*H)	6000*4600*3100mm
Weight	7000kg

About Dafon Stone Machinery
We are a CE certificated manufacturing factory, professional stone machine factory that integrates design, manufacture, and trading as one. We mainly produce a multiblade stone cutting machine(especially for curbstone/kerbstone/cobblestone etc), infrared edge cutting machine, automatic line polishing machine, full automatic edge cutting machine line, multiblade stone block cutter, quarry mining machine and all sorts of stone cutting and processing machines. We also bring in new technology on manufacturing environment-friendly equipment, such as a waste water recycling system, stone dust vacuum cleaner, etc. Based on industrial cluster advantage, we offer one-stop stone cutting product solutions for free to our customers including guidance for mine planning, technical consultant, technical output, equipment and tools purchase, guidance for factory construction, etc.
Certification:
Our Exhibition:
Machine Loading:
Packaging & Shipping:
The machine will be consolidated tighly and safely within container and deliver by sea or railway, we offer fast delivery and prompt react.

FAQ:
Q: When can you ship my order?
A: Normally 15-20days after advanced payment is received. The exact delivery date will be advised after order is confirmed. We will try our best to deliver soonest, if you need them urgently.

Q: How long is the warranty period for machine?
A: one year !

Q: How do I install and operate the machine, after receiving it?
A: For simple machine, we will provide sufficient installation, operation and maintenance instruction and videos, which will make the whole thing as simple as possible for users. For high-tech machine, our engineers can fly abroad to help you install & debug the machine, and teach you how to operate and maintain the machine properly in the future.

Q: Are you manufacturer or trading company?
A: We are manufacturer that has our own factory, technical Dept., marketing and after sale service teams.

Q: What is your advantage?
A: Firstly we are manufacturer, you could get best price without paying any commission. Secondly, we provide advisory machinery, debugging, maintenance and fault handling package of services. Thirdly, we offer customized overall solutions and one stop service. Both of our machine and diamond tools are excellent. Fourthly, we give you technology support on not only machine, but also diamond tools. Finally, better and lower cost after-sale service could be provided thanks to our worldwide network.
