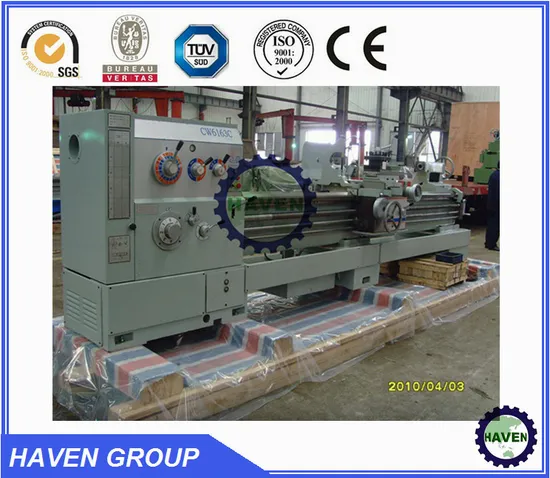

Horizontal Lathe Machine CW6283C/4500
| US$10,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CW6283C/4500
Processing Accessory
pipe and flange type metal workpiece
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Stations Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Swing Over Bed
830mm
Distance Between Centerm
4500mm
Transport Package
Wooden Pallet
Specification
CW6283C/4500
Trademark
HAVEN
Origin
China
HS Code
8455
Production Capacity
100units/Month
Product Description
Horizontal Lathe Machine CW6283C/4500Main feature:
This series horizontal lathe has good reputation in this line and populated by customers in domestic and abroad. It including: CW663C, CW6 73C,CW683C, CW693C, ect. Distance between centers are 750mm,1000mm,1500mm,2000mm,3000mm,4500mm,6000mm
Main specification:
| Model | Unit | CW6163C CW6263C | CW6173C CW6273C | CW6183C CW6283C | CW6193C CW6293C | |
Swing over bed | mm | 630 | 730 | 830 | 930 | |
Swing in gap | mm | 800 | 900 | 1000 | 1100 | |
Swing over cross slide | mm | 350 | 450 | 550 | 650 | |
Distance between centers | mm | 750,1000,1500,2000,3000,4500,6000 | ||||
| Length in gap from face plate | mm | 300 | ||||
Spindle nose | | Cll or D11 | ||||
Spindle bore | mm | 105,130 | ||||
Spindle speeds | rpm/steps | 10_800/18 | ||||
Cross slidle travel | mm | 480 | ||||
Top rest travel | mm | 225 | ||||
Rapid traverse | mm/min | :3200, :1900 | ||||
Quill diameter | mm | 90 | ||||
Quill travel | mm | 260 | ||||
Quill taper | | MT5 | ||||
Bed width | mm | 550 | ||||
Metric threads | mm/kinds | 1_240/53 | ||||
Inch threads | tpi/kinds | 30_2/31 | ||||
Module threads | mm/kinds | 0.25_60/46 | ||||
Diametral pitch threads | Lpi/kinds | 60_0.5/47 | ||||
Main motor power | kw | 11 | ||||
| Packing size | Length | mm | 3460,3390,3795,4330,5310,6810,8310 | |||
| Width | mm | 1400 | ||||
| Heigth | mm | 2000 | ||||
Gross weight | Kg | 4250 | 4450 | 4650 | 4900 | |
| 4500 | 4700 | 5100 | 5300 | |||
| 5000 | 5200 | 5600 | 5800 | |||
| 5500 | 5700 | 6100 | 6300 | |||
| 6200 | 6400 | 6600 | 6900 | |||
| 7300 | 7500 | 7600 | 7900 | |||
| 8300 | 8500 | 8600 | 8700 | |||
