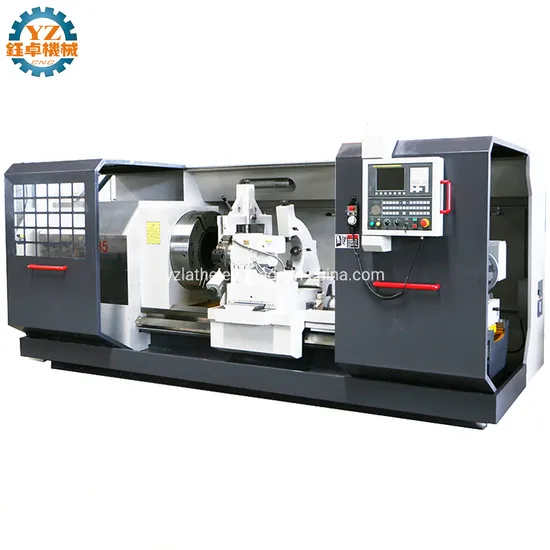

Ck1335 Ck350 Big Spindle Bore Horizontal Metal Turning Oil Machine Pipe Threading Machine CNC Pipe Lathe

Product Description

CK1335 CK350 China CNC Oil Country Lathe CNC Pipe Threading CNC Lathe Machine
Specifciations:

Item	Unit	CK1335
Max dia. swing over bed	mm	1000
Max dia. swing over cross slide	mm	610
Max length of workpiece	mm	1500
Width of bed	mm	755
Spindle bore	mm	360
Power of spindle motor	kw	22
Mode of spindle speed		Two gears, Smooth adjustment
Range of spindle speed	r/min	(L): 30-130 (H): 65-260
X/Z axis travel	mm	X:550 / Z:1250
X/Z axis rapid traverse	mm/min	4000
X axis motor speed	r/min	1500
X axis motor torque	N.m	18
X axis motor power	kw	2.8
Z axis motor speed	r/min	1500
Z axis motor torque	N.m	22
Z axis motor power	kw	3.5
Tailstock quill diameter	mm	140
Tailstock quill travel	mm	300
Tailstock quill taper		MT6
Turret model		SLD170A04N
Tool post type		Vertical 4- station
Turret dimension	mm	300x300
Turret indexing time	s	5.6
Chuck		K66-780, Four jaw chuck
Positioning accuracy	mm	0.02
Repositioning accuracy	mm	0.01
Machine size	mm	5000x2200x2100
Machine weight	kg	12000

Standard Configuration:
1. CNC system: GSK980;
2. The spindle servo speed;
3. Front and rear three-jaw manual chuck;
4. Vertical four-position electric turret;
5. With tailstock;
6. Automatic lubrication system;
7. Turning cooling system;
8. Independent spindle, servo drives, variable speed.
Optional Configuration:
1. CNC system: KND, Siemens, Fanuc.
2. Electric chuck, pneumatic chuck, hydraulic chuck.
3. Horizontal six-position electric turret.
4. The rear bracket.
After-sale Services:
Warranty is one year. We would offer the parts (quality problem) free of charge during this period. Note: GSK ,Servo driven, motor and transformer, Warranty is 3 years.
