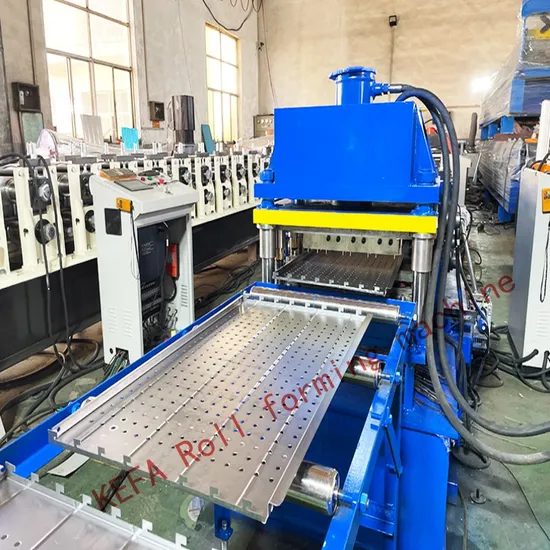

Rack System Roll Forming Machine Pallet Rack Roll Forming Machine

Product Description

Product Description
2021 Pallet Racking System Machine Roll Forming Machine Racking Equipment

01
PLC
The width be automatic
adjusted by PLC.

02
MEMORIAL ARCH FRAME TYPE
Shelf layer panel cold roll forming machine adopts memorial arch frame
type,independent roller station make the machine more beautiful and stability.

03
ROLLERS
All the rollers are through guench treatment.CNC machine treatment twice and polished on the surface to guarantee the accuracy and long life.
04
REGULATING SYSTEM
it no need to change the spacer one by one, just change the screw whole on the machine so that can adjust different sizes.


05
HYDRAULIC CUTTING
The cutting is hydraulic cutting,you
can change different blades for
different sizes of the shelf.
Product Parameters

Item	Name	Description
1	Decoiler	Capacity:5 tons
2	Material	Steel Coil
3	Thickness	0.6-2.5mm
4	Transmission	Chain/Gear/Gearbox
5	Speed	10-15m/min
6	Roller	Steel with quenched treatment,chromed on the surface
7	Shaft	steel with tempering treatment
8	Cutting type	Hydraulic cutting
9	Cutting material	Cr12 with quenched treatment Hardness58°-62°
10	Welding	Automatic spot welding
11	Control system	PLC
12	Electric brand	Delta,Siemens
13	Voltage	380V,50HZ,3PH(or as customers' request)

Detailed Photos

Other product links

Company Profile

Certifications

Packaging & Shipping

FAQ
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
