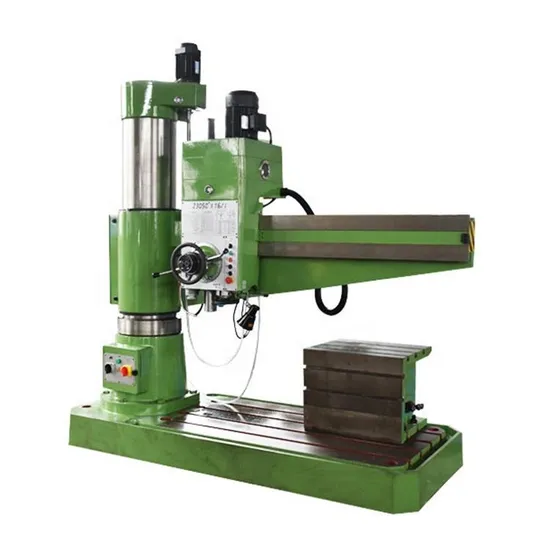

Chinese Made Z3050X16 Type Radial Drill Table Drilling Machine

Product Description

Product Description
Product Description
Characterc
1) With wide range of speed and feed, with manual, power and fine feeds. The feed of machinery are very easily engaged and disengaged at any time.
2) With safe and reliable feed safety machine, all parts easy operation and change. All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraudic power.
3) Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
4) Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of materia for basic parts.
5) Spindle parts are made by special high quality steel heat treatment which made by first class equipments, ensuring high strength and durability.
6) Main gears are machining by gear grinding, ensuring high precision and low noise.
Standard accessories
1) Box shape worktable
2) Taper sleeve
3) Tool releasing Wrench
4) Drift
5) Eyelet bolts

Special accessories
1) Quick instead chuck
2) Tapping chuck
3) Grease gun

			15104
Model			Z3050x16
Max. drilling diameter		mm	50
Distance between spindle axis	Max	mm	1600
and column	Min	mm	350
Distance between spindle end	Max	mm	1210
and working surface of base plate	Min	mm	350
Spindle taper (Morse)			No.5
Spindle travel		mm	315
Spindle speeds steps			16
Range of spindle speeds		r/mm	25-2000
Spindle feeds steps			16
Range of spindle speeds		mm/r	0.04-3.2
Power of main drive motor		kw	4
Voltage		V	380, 440/220, 420
Frequency		Hz	50, 60
Weight	N.W	kg	3500
	G.W	kg	3850
Overall dimensions (L x W x H)		cm	(219) 249(289) x 104 x (243) 284
Dimesions (L x W x H)		cm	(260 ) 292(332) x 123(258) x 288
