C6250 Light Duty High Precision Conventional Horizontal Lathe Machine for Metal Cutting

Product Description

C6250 Light Duty High Precision Conventional Horizontal Lathe Machine for Metal Cutting

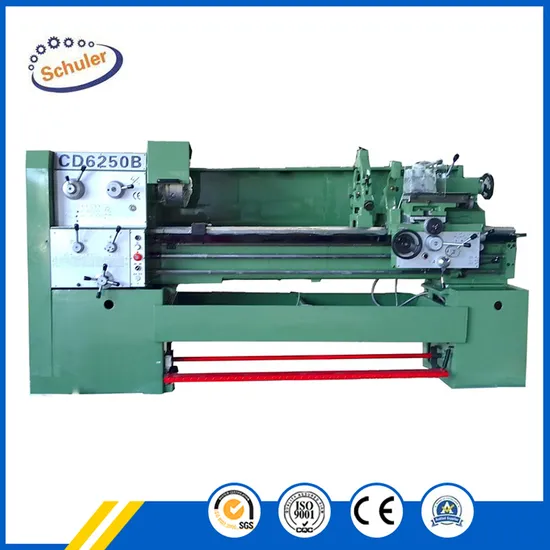

Product Picture:
Product Features:
1.Bed rail grinding high precision
2.CE conformity,electromagnetic brake can be amounted
3.Screw overload protection
4.Light bars overload protection
5.Fast feed(special order)
6.Precision ball bearings supporting
Standard accessories:
1.3-jaw chuck
2.center¢re sleeve
3.wrenches
4.oil gun
5.operation manual
Optional accessories: 1.steady rest
2.Follower rest
3.4-jaw chuck
4.Face plate
5.Thread chasing dial
6.Longitudinal automatic trip
7.Live center
8.Quick change toolpost
9.Taper copy ruler
10.4-position longitudinal trip
Metal Lathe Technical Parameters:

Specifications		C6150
Capacity	Max.Swing over bed	500mm
	Max. rotating diameter	300mm
	Center distance	750,1000,1500,2000mm
Spindle	Spindle hole	52mm(82mm)
	Spindle nose	ISO-C6(C8)
	Spindle tap	MT6
	Spindle speeds(Number)	36-1600rpm (12 Steps)
Feed	Metric threads range(Kinds)	0.5-14mm (18 Kinds)
	Inch threads range(Kinds)	2-40/inch (28 Kinds)
	Moudle threads range(Kinds)	0.25-3.5mπ (17 Kinds)
	Compound rest travel	150mm
	Cross slide travel	180mm
	Cross-section size of toolshank	22×22mm2
Tailstock	Dia.of tailstock sleeve	75mm
	Taper of tailstock sleeve	MT5
	Travel of tailstock sleeve	160mm
Main motor power		5.5/7.5KW
Machine size (L*W*H mm)	Overall dimensions for750mm	2100×1150×1550mm
	Overall dimensions for1000mm	2350×1150×1550mm
	Overall dimensions for1500mm	2850×1150×1550mm
	Overall dimensions for2000mm	3350×1150×1550mm
Weight(kg)	Weight for 750mm	1700kg
	Weight for 1000mm	1800kg
	Weight for 1500mm	2000kg
	Weight for 2000mm	2200kg

Brand Image:
As a professional manufacturer of lathe machines, we want our customers to know of our commitment to providing the latest products to all customers.
Metal Lathe Details:
Metal Lathe In the Workshop:
Metal Lathe Package delivery:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
Our Company:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Vedio
We can provide on-site training and commissioning Vedio
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
