NEMA 17 Solid Quality China Factory Customized Stepper Motor

Product Description

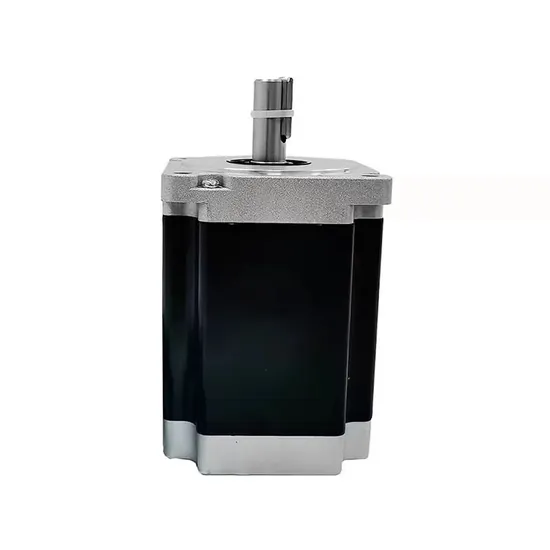

Prodcuct Photos Stepper Motor Description Stepper motors, AC servo motors and brushless dc motors are avaiable to customized for the world, NEMA 11, 14, 16, 17, 23, 24, 34 stepper motor, 50W, 100W, 200W, 400W, 500W, 750W, 1000W, 1200W AC servo motor, and brushless dc motor are all included. The derived products are widely used in ATM machines, digital scanners, stylus printers, plotters, slot machines, CD-ROM drivers, stage lighting, camera lenses, CNC machines, medical machines, 3D printers, cleaning machines and quadcopter for industry and our life.
Motor Model: 86BYGH 204-C-30
Step Angle: 1.8°± 5% full step, no load Motor Length: 100 mm (3.94 in)
Holding Torque: 4900 mNm (694 oz-in)
Rated Current: 5.2 A DC
Resistance per Phase: 0.43 ohm
Inductance per Phase: 2.7 mH
Shaft Length: 30 mm (1.18 in)
Shaft: D-Cut Shaft
Connectors: Lead Wires Ambient Temperature: -24 ºC - +60 ºC Relative humidity: 90% MAX Resistance Accuracy: ± 10% Insulation Resistance: Larger than 100mΩ 500V DC Dielectric Strength: 600V AC for 1S, leakage current less than 1mA.
Technical Specification
Wiring Diagram
Frequency-torque characteristics
