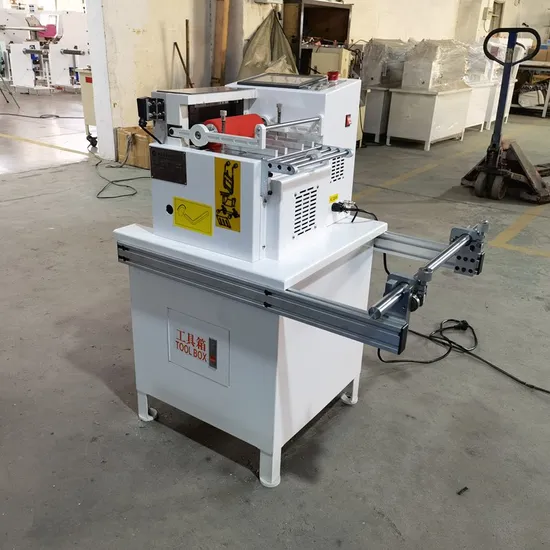

Textile Laminating and Cutting Machine (HX-160TQ)

Textile Laminating and Cutting Machine (HX-160TQ)

US$2,400.00 1 Piece (MOQ)

Basic Info.

Model NO.
HX-160TQ
Certification
CE
Condition
New
Automatic Grade
Automatic
Application Place
Factory
Applicable Thickness
Thin Material
Power Supply
Electric
Applicable Material
Rubber, Plastic, Genuine Leather, Polyester Knitted Fabric, Knitted Fabric, Denim, Velvet, Artificial Leather
Model
Hx-160tq
Voltage
220V
Power
375W
N. W.
83kg
G. W.
133kg
Cutting Length
0.1~9999.9mm
Cutting Width
1~160mm
Measurement
550X550X1000mm
Manufacture Experience
10years
Export Experience
5years
Classification
Cutting Machine
Type
Garment
Transport Package
Plywood Case
Specification
160mm
Trademark
Hexin
Origin
Kunsha, China
HS Code
84411000
Production Capacity
1000PCS/Month

Product Description


HX-160TQ Textile laminating and cutting machine

Main Technical Parameter (Textile laminating and cutting machine):

Model
HX-160TQ

Voltage
220V

Power
1/2HP

N.W.
90kg

G.W.
140kg

Cutting Length
0.1~9999.9mm

Cutting Width
1~160mm

Measurement
550x550x1000mm


Features (Textile laminating and cutting machine):
1. The max width: 160mm
2. Tolerence: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-15mm
4. Kiss cut or cut through available
5. Under CE and ISO Certifications
6. Warranty for machine: 12months
7. Delivery time: 1-3days
8. Cut through for standard machine
9. Kiss cut is for optional

Characteristics (Textile laminating and cutting machine):
1. This machine adopts man-machine interface + PLC program device to set feeding material length, with lamination function.
2. Cutting and laminating can be finished at one time.
3. To save time and material, it is ergonomically designed which is easy to operate.
4. The cutting length is accurate.
5. Operation is easy.
6. Waste rate is low.
7. Manufacturing experience: 30 years
8. Export experience: 20 years

Application (Textile laminating and cutting machine):
Sizing cutting and laminating for insulation, protective film, PVC, PC film and so on.

After-service (Textile laminating and cutting machine):
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
