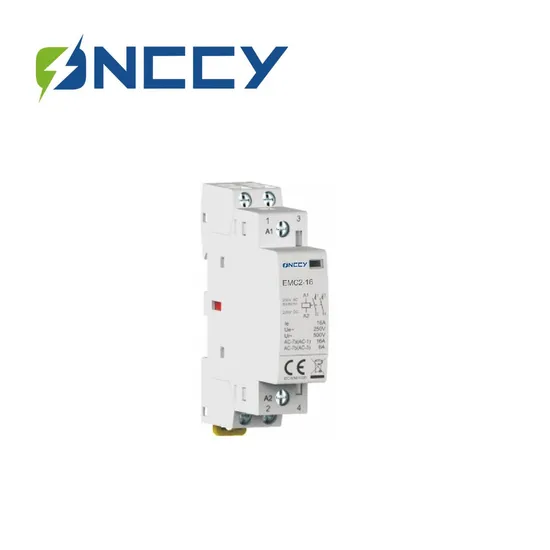

40A-63A Single Pole 12V 230V Universal AC-1, AC-3, AC-7A, AC-7b AC/DC Contactor

Product Description

Product Description
The EMC2 modular contactor (hereinafter referred to as contactor) is mainly suitable for AC 50Hz (or 60Hz), rated working voltage to 400V and rated current operation in the circuit up to 63A, it can control the low-inductance and low-inductance load of household appliances and similar purposes; it can also be used to control the load of household motors. The power should be reduced accordingly.
EMC2 series ultra-wide voltage AC&DC contactor is suitable for using in the circuits the rated voltage up to 32A-63A, for making & breaking, frequently starting & controlling the AC&DC motor.


Current: 16A-63A 12V-230V AC and DC Universal Multiple Usage Categories Can be used in AC-1, AC-3, AC-7a, AC-7b and other usage categories Main technical parameters

Specifications			16A	20A	25A	40A	63A	100A
Rated current		AC-7a	16	20	25	40	63	100
		AC-7b	6	7	8.5	15	20	30
Agreed heating current Ith(A)			25	25	25	63	63	100
Rated insulation voltage Ui(V)			500
Rated operating voltage Ue(V)			250V(1P/2P) 400V(3P/4P)
Number of main contacts		1P	1NO,1NC
		2P	1NO1NC,2NO,2NC
		3P	3NO,3NC
		4P	2NO2NC,3NO1NC,4NO,4NC
Control power	AC-7a	230V	3.5	4.5	5.5	9	14	22
		400V	6.5	8	10	16	25	38
	AC-7b	230V	1.4	1.6	2	3.5	4.5	6.5
		400V	2.4	2.8	3.4	6	8	11
Electrical life(times)			10ten thousand
Mechanical life(times)			100ten thousand
Maximum number of switching operations per hour			30
Maximum number of switching operations per day			100
Quota control power supply voltage Us(V)			AC 24/50Hz AC230/50Hz
frequency			50Hz/60Hz
Class of pollution			2
Rated impulse withstand voltage(Uimp)			2.5kV(4kV--12/24/48VAV)
Protection level (IEC60529)		Contactor body	IP20
		Installed in distribution box	Ip40
working temperature			-5ºC~+60ºC
Storage temperature			-40ºC~+70ºC
Hygrothermal resistance(IEC60068.1)			2-class(At 55ºC,Relative humidity is 95%)
ELSV(Ultra-low Safety Voltage) 12/24/48 VAC
Product control meets the requirements of SELV (Safe Ultra-Low Voltage)

Note: When the contactor is installed in the distribution box, spacers must be assembled on both sides to facilitate heat dissipation.
Detailed Photos
The EMC2 contactors according to standard IEC/EN61095 ,IEC60947-4-1 and are used mainly in buildings for switching and controlling lighting, heating, ventilation and pumps. They are part of the complete range of Din rail products and can be integrated easily in dedicated panels. Our Advantages
