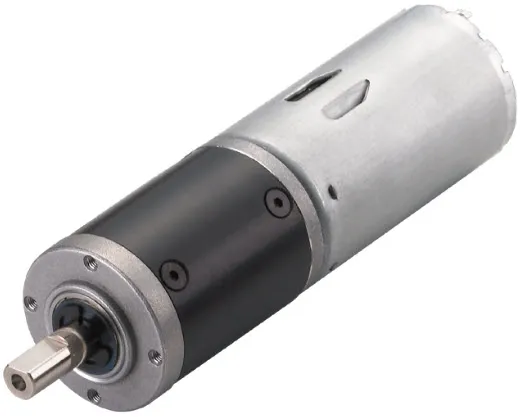

36mm 12V 24V Low Rpm Electric DC Planetary Gear Motor with Encoder

Product Description

Note:
The specifications can be designed according to the customer's requirements!
Application:
Electric Drill, Screwdriver, Scanners, Printers, Vending Machine, Window Curtain, Coffee Machine, Electric Lock, etc.
Parameter:

	Reduction ratio	1/5	1/14	1/19	1/27	1/51	1/71	1/100	1/139	1/189	1/264	1/516	1/721
12V	Rated torque(Kg.cm)	1.1	2.5	3.6	5.0	8.2	11.5	16	20	25	25	30	30
	Rated speed(rpm)	1250	475	340	243	129	92	66	47.2	34.8	25.1	13.2	9.5
24V	Rated torque(Kg.cm)	1.1	2.7	3.8	5.3	8.7	12	17	20	25	25	30	30
	Rated speed(rpm)	1240	470	335	240	127	91	65	46.5	34.3	24.8	13	9.4
	Rotation direction	CCW
	Length(L-mm)	33.1	41.8			50.5				59.2

Rated volt(V)	Rated torque(g.cm)	Rated speed(rpm)	Rated current(mA)	No-load speed(rpm)	No load current(mA)	Weight(g)
12	270	6570	<=2050	7500	<=300	222
24	285	6480	<=1050	7500	<=210	224

About Us:
We specialized in researching, developing, and servicing electric motors, gearbox, and high precision gears with the small module. After years of development, we have an independent product design and R&D team, service team, and a professional quality control team. To realize our service concept better, provide high-quality products and excellent service, we have been committed to the core ability and training. We have a holding factory in Nanjing, which produces high precision small mold gears, gear shaft, gearbox, and planetary gearbox assembling.
Work-flow:
Certificate:
RoHS, CE, and more...
Service:
ODM & OEM
Gearbox design and development
Package&Ship:
Carton, pallet, or what you want
The delivery time is about 30-45 days.
Customer's Visiting:
FAQ:
1. Can you custom gearbox?
YES.
2. DO you provide the sample?
YES.
3. Do you provide technical support?
YES
4. Do you have a factory?
Yes, we are a professional manufacturer.
5. Can I come to your company to visit?
YES
