Product Description

Product Description

The main function:

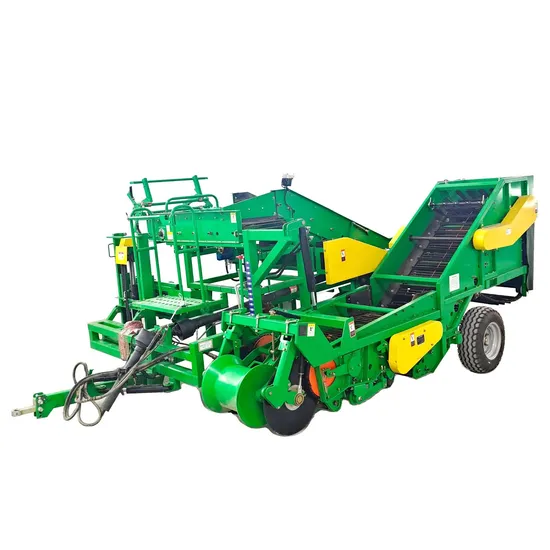

The potato combine is an efficient agricultural machine designed specifically for harvesting underground root crops such as potatoes.

These harvesters combine advanced technology and design to improve harvesting efficiency, reduce breakage rates, and ensure a smooth harvest.
4UQ-1A
The 4UQ-1A combine is improved on the basis of the original small sorting and harvesting machine, so that the digging depth is increased significantly to improve the harvest efficiency, while the multi-channel transmission chain equipment makes the cleaning effect of potatoes better, reducing the soil attached to the potato skin, thereby reducing the weight.

Certifications

Packaging & Shipping
motorPacking by iron box .We can shipped to Qingdao port or Shanghai portThe goods usually shipped by sea.lf you need a bigquantities, we can packed in bulk. We also can packed container directly irour factory.
Iron pallet or wooden cases
Delivery Detail: By sea or By air
1. Waterproof packing with the international export standard by 20ft, 40ftcontainer.
Wooden Case or Iron Pallet.
2.The whole set of machines size are large as normal, so we will use Waterproof materials to pack
all of them. The
, gear box or other easily damaged parts, we will put them into box.
We have a professional shipping department, they will try their best to save your container quantity.

Installation Instructions

Product Name	The potato combine harvester
Matching power	80-120HP
Structural style	Pull-type
Walking mode	Wheel type
Wheel number	2
Tire spacing (center)	1750-2400mm
Total weight	2850kg

NO.	PROJECT	DESIGN VALUE
1	Working size (L * W * H)	6100*3600*2300mm
2	Shipping size (L * W * H)	6100*3600*2300mm
3	working width	800mm
4	Digging depth adjustment range	0-50mm
5	Type of excavation device	Combined flat shovel
6	Depth limiting mechanism type	Cylinder type
7	Pick up the smallest size	40mm
8	Type of cleaning separation device	Vibrating grid-screen conveyor chain
9	Conveyer type	Grid-screen conveyor chain
10	Conveyor chain gap	40/45mm
11	collection methods	container bag
12	Volume of collection box	≥1m³
13	Discharge method	Sliding frame type
14	Discharge height	360mm
15	Type of stem and vine removal device	Stop the straw rod against the wheel
16	Tool forward speed	1.5-6km/h

Multi-angle presentation
Harvester rear side display.The front end pulls and the rear end tires move in tandem to maintain a smooth ride and turn the direction,making the harvest process more flexible and convenient.
From the left side of the harvester and the rear of the sorting table, sorting work, can stand three to four people at the same time, with the machine for sorting and bagging work.
Our Advantages
Compacting disc

Using the disc weight to make the moving shovel sink, improve the digging efficiency, increase the digging depth, and ensure the integrity of potatoes.
Potato conveyor belt
The four transmission devices simultaneously complete the process of potato harvesting, cleaning, sorting and bagging, which greatly saves costs and reduces manpower and material resources, and cleans potato skin soil to reduce transportation weight.

Three-point traction

Three-point suspension traction, driven by the tractor to drive the machine forward and change direction, making the harvest process more flexible and convenient.
PTO transmission shaft

The drive shaft connects the tractor and the harvester, so that the tractor provides power for the conveyor belt and the potato bagging device, driving the machine to complete a series of operation

FAQ
Q1: Are you a factory or trading company?

We are Yucheng Dingshengyuan Machinery Manufacturing Co., Ltd, a manufacturer with self-supported import and export rights.
an I trust your company?
Q2: How c
We are a fully registered manufacturing and exporting company approved by the China Export Registration Authorities. Our products have been exported to numerous countries, including the USA, Thailand, Russia, Poland, Netherlands, Australia, Chile, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, and Congo. We are committed to providing good faith, punctuality, strict quality control, and reasonable prices to each customer.

Q3: Where is your factory located? How can I visit there?

Our factory is located in Yucheng City, Shandong Province, China. It is approximately 1 hour away from Jinan Airport. We warmly welcome all our clients to visit us!

Q4: How can I place an order from your website?

Placing an order is easy. Once you find the implement you need on our website, you can either place an inquiry against it or go to the inquiry section and leave us a message with your name, country, and phone number. We will get in touch with you as soon as possible. You can also email us directly or join us on live chat for instantaneous answers.

Q5: How can I make the payment?

Payment can be made via Telegraphic Transfer (T/T) through the bank against the proforma invoice. We require a 30% prepayment, and the balance is due when the goods are ready for shipping. We also accept irrevocable L/C at sight.

Q6: What are the payment terms?

FOB: The price of the implement does not include sea shipment costs.

CIF: The price includes the unit cost, marine insurance, and shipment charges to your destination port.

CFR: The price includes the unit cost and shipment charges to your destination port.

Q7: At which port do you usually ship the goods?

We usually ship goods via Qingdao, Shanghai, Ningbo, and Tianjin ports in China.

Q8: How about the warranty?

We offer a 12-month warranty from the time the goods arrive at the destination.
