Chinese Factory Precision Manual Lathe Machine Ca6280cx2000
Basic Info.
Model NO.
CA6280Cx2000
Type
Horizontal Lathe
Processing Accessory
Manual Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Way Toolpost
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
High Quality Gap Bed Lathe Machine Ca6280cx1500
Max.Swing Over Bed
800mm
Distance Between Centers
1500mm
Tool Post Type
4-Way Toolpost
Spindle Motor
7.5kw
Chuck
Manual Chuck
Voltage
380V
MOQ
1 Set
Delivery Time
2 Months
Spindle Bore
105mm
Width of Bed
400mm
Tailstock Quill Diameter
Mt5
Spindl Speed
16-1400rpm(24steps)
Key Word
Precision Lathe
Control
Manual Lathe
Transport Package
Wooden Case
Specification
3200x1140x1750
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
370.00cm * 114.00cm * 175.00cm
Package Gross Weight
3260.000kg
Product Description

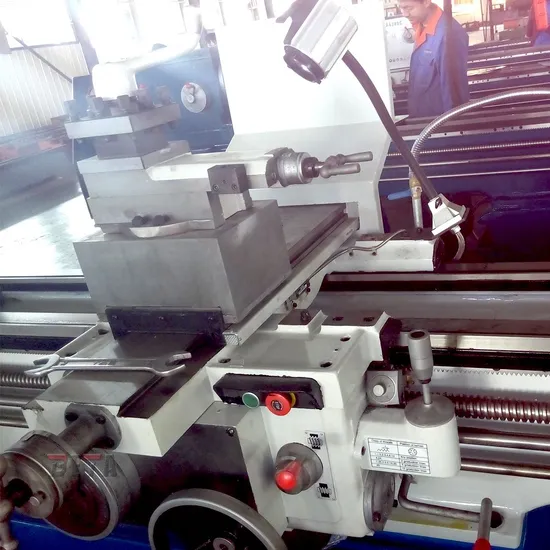

HIgh Quality Gap Bed Lathe Machine CA6280Cx2000
| Model | Unit | CA6280C |
| Max. swing over bed | mm | 800 |
| Max. swing over carriage | mm | 540 |
| Max. swing in gap | mm | 1020 |
| Effective gap length | mm | 210 |
| Max. length of workpiece | mm | 2000 |
| Width of bed | mm | 400 |
| Section of turning tool | mm | 25x25 |
| Spindle speed | r/min | 16-1400 (24 steps) |
| Spindle bore | mm | Φ105 |
| Spindle taper | Morse | (Φ113 1:20) |
| Feeding number | kinds | 64 |
| Range of metric threads | mm | 1-192 (44 kinds) |
| Range of inch threads | 2-24TPI (21 kinds) | |
| Range of module threads | mm | 0.25-48 (39 kinds) |
| Range of diametral pitc threads | mm | 1-96DP (37 kinds) |
| Tailstock quill travel | mm | 150 |
| Tailstock quill taper | mm | Φ75 |
| Tailstock quill diameter | Morse | MT5 |
| Main motor | kw | 7.5 |
| Packing size | mm | 3700x1140x1750 |
| Weight | kg | 3087/3260 |
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
