China Manufactory plastic jar making machine with factory price

Product Description

Product Description
1
Product Description
Machine Features:

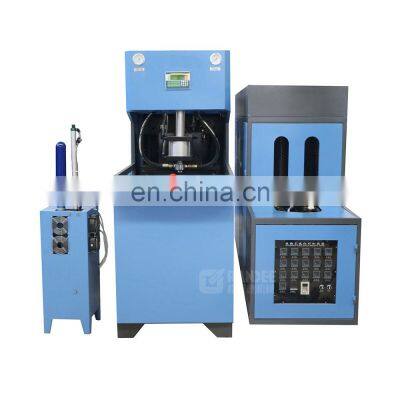

1.GD-B20L 5 gallon blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
2.Perfect function with economic investment.
3.Small size and compact construction with no space waste.
4.Easy to operate and maintain ,operation by one person .
5.Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
6.We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s requirements.
Technology advantage:
1.Special design,high rigid compound die structure
2.Wide adaptability, suitable for every type mould thickness
3.Adjust conveniently
4.No mould rolling out
5.More energy conservation,no need much air supply
6.High burnish principal axis, with very precise polishing, light action and low noise.
7.Short mould stroke,quick action
8.All casting, with long timing process,very small transformation,can meet your precise request 100%.
Main machine :
One Cavity 5 gallon bottle blowing mold
Stretching cylinder
Mould and Finished Products
High pressure compressor with 1.2m³/30KG
Main technical parameter:

Model	GD-20BL
Container	Product material	PET
	Volume	10L-25L(3-5Gallon)
	Theoretical output	90-180PCS/H
	Preform length	15mm-460mm
	Preform inner diameter	φ5mm-200mm
Moulding	Max.mould plate Dimension(L x W)	420x500mm
	Max.mould thickness	40mm
	Clamping force	330KN
	Mould opening stroke	38mm
Machine size and weight	Main machine (L x W x H)	218*77*196cm
	Main machine weight	1000Kg
	Heater (L x W x H)	237*68*165cm
	Heater weight	380Kg
	Power	40kw

Company information
FAQ
Q1: How to find suitable plastic bottle blow moulding machine or complete water production line?
A1:  Looking for beverage filling machine in www.grandeemachine.en.china.cn
Q2: What's the capacity of plastic bottle moulding machine?
A2: We have full automatic and semi automatic unit with 800BPH to 2000BPH for 5000ml plastic bottle
Q3: How to choose the capacity of blowing machine for water production line?
A3: If you want 600-800BPH for 5000ml water production line, you can choose semiautomatic blowing machine or automatic one cavity blowing machine,if you want 1000-1200BPH, you can choose automatic 2 cavity blowing machine, if you want more bigger capacity, you can send me inquiry, we can give you more professional technical solutions.
Q4: Are you a trading company or a manufactory?
A4: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q4: Do you have technical support after we purchased your machines?
A4: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q5: If you buy our machines, can you offer us wear-out spare pats?
A5: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
