1gqnk -300d Farm Agricultural Equipment Rotary Tiller
Basic Info.
Model NO.
LK
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Fixed Operation
Traction Type
Semi Hanging
Drive Type
Chain Drive
Arbor Configuration
Vertical Shaft
Certification
ECE, EU, CE
Color
According to Customer Requirements
Warranty
12 Months
Model
1gqnk-80d
Matched Power(HP)
12-15
Working Width (M
0.8
Working Depth mm
80-160
Qty. of Knives
16
Type of Knife
Lt245
Total Weight(Kg)
190
O.D. mm (L*W*H)
850×850×1000
Transport Package
Iron Cage
Specification
850*850*1000
Trademark
LK
Origin
China
HS Code
8432100000
Production Capacity
5000pieces/Year
Product Description

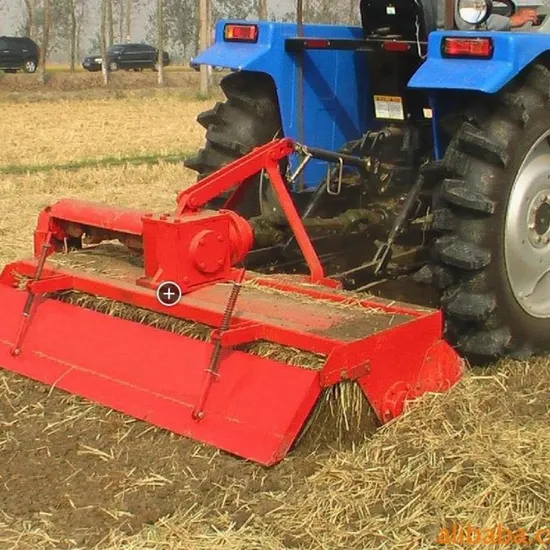

Product DescriptionRotary tiller driven by the tractor's out-put sgaft.During operation,the soil is crumbled by the rotating and forwarding of the blades fixed on the sgaft.It also can be used as shallow tilling and covering on the stalinized soil to prevent the salt in the soil.Themachine will fulfill the working of cleaning stubbles and weeds,turning and covering green fertilizer vegetable fields,etc. After tillage,the land surface is leveling and smooth,the cover burden is closely,working efficiency is high and oil consumption is lower. Product Parameters
| Model | Matched power(hp) | Working width (m) | Working depth mm | Qty. of knives | Type of knife | Total weight(kg) | O.D. mm (L*W*H) |
| 1GQNK-80D | 12-15 | 0.8 | 80-160 | 16 | LT245 | 190 | 850×850×1000 |
| 1GQNK -100D | 12-15 | 1.0 | 80-160 | 16 | LT245 | 208 | 850×1050×1000 |
| 1GQNK -115D | 15-18 | 1.15 | 80-160 | 24 | LT245 | 224 | 900×1310×1000 |
| 1GQNK -120D | 15-18 | 1.2 | 80-160 | 24 | LT245 | 229 | 900×1350×1000 |
| 1GQNK -125D | 18-20 | 1.25 | 80-160 | 24 | LT245 | 234 | 900×1450×1000 |
| 1GQNK -140D | 20-25 | 1.4 | 80-160 | 24 | LT245 | 244 | 900×1600×1000 |
| 1GQNK -150D | 25-30 | 1.5 | 80-160 | 24 | LT245 | 254 | 900×1740×1000 |
| 1GQNK -160D | 30-40 | 1.6 | 80-160 | 24 | LT245 | 265 | 900×1880×1000 |
| 1GQNK -180D | 50-55 | 1.8 | 80-160 | 32 | LT245 | 437 | 1020×2056×1152 |
| 1GQNK -200D | 55-75 | 2.0 | 80-160 | 32 | LT245 | 452 | 1020×2396×1152 |
| 1GQNK -220D | 60-80 | 2.2 | 80-160 | 40 | LT245 | 475 | 1020×2636×1152 |
| 1GQNK -250D | 75-80 | 2.5 | 80-160 | 40 | LT245 | 490 | 1020×2816×1152 |
| 1GQNK -280D | 80-90 | 2.8 | 80-160 | 48 | LT245 | 515 | 1020×3066×1152 |
| 1GQNK -300D | 90-100 | 3.0 | 80-160 | 56 | LT245 | 536 | 1020×3316×1152 |
Detailed Photos
