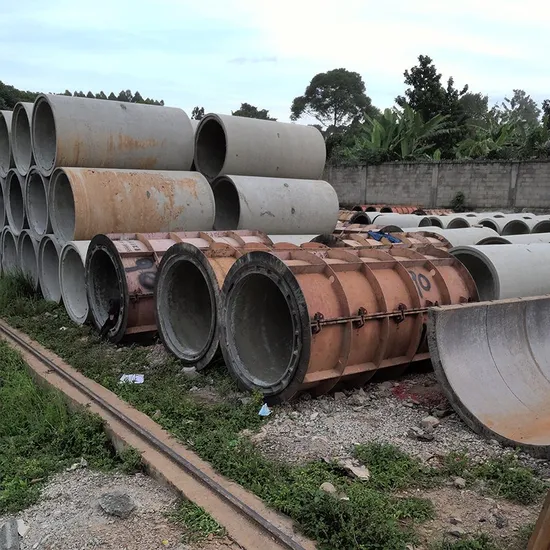

Top-Selling Concrete Pipe Manufacturing Machinery with Steel Molds for Drainage Pipes

Product Description

Core Mold Vibration Concrete Pipe Machine
1. Product introduction
Core mold vibration concrete pipe machine is used to produce reinforced drainage pipe with shape of Socket joint/Flexible tongue&groove joint/Steel Socket joint,Diameter:800mm-4000mm,length:1m-2.5m 2.Product Features
1)The overall power is 115KW,the vibrator speed is 0-4250rpm,and the exciting force is 30-450KN
2)The machine is composed of the following parts:1.Two sets of rubbing mill;2.Two sets of basic cross beams and motor bases;3.Two sets of spindle bushings;4.Two sets of inner mold core rod;5.Two Sets of port rubbing mills 6.Two sets of core rod cooling and lubrication system;7.One set of main hydraulic system;8.One set of conveyor belt conveyor ;9.One set of rotary distributor;10.One set of electric control system;11.Equipment wire,oil pipes,bridges,etc.
3)The motor base adopts two18.5/22kw motors to drive the vibrator as the vibration source to ensure the long-term operation of the equipment
4)The control system is frequency conversion,the electrical pasrts adopt the imported brand,and the inverter,PLCcontro,and human-machine interface adop the Delta brand;
5)The core rod adopts a set of cold lubrication system,and the ordinarymechanical oil direct injection cooling mode,cooling effect is good ,low operation cost,to ensuring that the core road long-term working temperature controlled below 60°C,all the internal bearings in the core rod are imported from Japan NSK brand
6)The core adopts a soft connection method,which protects the high-speed rotating core rod,and the mold changing iss convenient and quick
3.Production Capacity
Lifting core type mandrel vibration tube making machine
1.Product introduction
The core rising concrete pipe machine combines the advantages of radial extrusion type and core mold vibration type,and make up for the shorttcomings
2. Product Features
1) The advantages is fast charging and forming,and high production efficiency,the average production efficiency is 2-3minutes/piece
2)It can produce reinforced concrete pipe with inner diameter 300-1800mm,length2-3m,joint shape;Flat joint,Socket joint,steel socket joint,Flexible tongue&groove joint
3)The technology improve the impermeability level of the pipe.The strength can reach more than 80%after natural curing 3-4days;Reduce the production cost
4)The rolling device adopts German BFS socket forming system,which has high forming rate,strong mechanical stability,low maintenance cost;The qualified rate of products products produced is high
5)High automation;It adopts computer control system,touch screen display,automatic adjustment of vviibration frequency,concrete feeding speed and so on.The whole machine can be operated by three people,which greatly improves the labor productivity
6)This product is an alternative to the traditional hanging roll process and the centrifugal process.It is the most competitive equipment in the cement pipe indusstry in the future
3.Production Capacity
