Customizable Pultrusion Equipment Machine Manufacturer

Product Description

Product Description
What is FRP pultrusion machine?

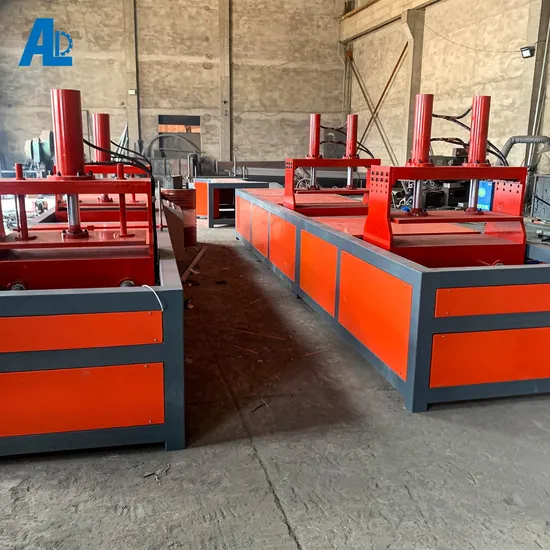

The hydraulic pultrusion production line is controlled by PLC, has LCD, and is a complete production unit integrating hydraulic reciprocating traction and pneumatic fixed-length cutting. The overall unit consists of a creel, dipping tank, mold table, reciprocating tractor, cutting saw, product support rack, control system, etc. It is equipped with various molds and can produce profiles with different cross-sectional sizes, such as rectangular tubes, wire troughs, round rods, I-beams, angle, square tubes, round tubes, solid bars, hollow panels, cable trays, bridges, photovoltaic brackets, photovoltaic frames, etc.

Equipment features: ·Temperature control adopts high-precision, dual-display instruments·Digital display of traction speed·The hydraulic cylinder seals are imported, and the hydraulic system uses a low-noise, energy-saving variable pump.·With automatic alarm for oil temperature and oil level faults.·The hydraulic traction device has a variety of working modes to choose from, and the traction speed can be adjusted steplessly.·Using gear and rack for transverse cutting, pneumatic pressing, and pneumatic tracking, and the cutting blade is a toothless saw blade.

Product Parameters
Main parameters:

Traction: 5t, 8t, 10t, 15 t, 20t, 30t or customized.
Clamping force: 5t, 8t, 10t, 15 t, 20t, 30t or customized.
Pultrusion speed: 0.05-1.5m/minute
Pultrusion width(WXH): 600mmX300mm or customized Motor power: 2 X 3KW = 6KW or customized
Heating power: 3 X 3KW = 9KW or customized
Temperature control: automatic
Size(LXWXH): 8.5mX 1m X 1.9m or customized
Driven by: hydraulic
Control: PLC
Main electrical components: Panasonic relay, Mitsubishi editable PLC, contactor.

Items / Type	ZLRCYZ -3	ZLRCYZ -6	ZLRCYZ -10	ZLRCYZ-12	ZLRCYZ-15	ZLRCYZ-25	ZLRCYZ -40
Pulling Force(Tons)	3	6	10	12	15	25	40
Clamping Force(Tons)	Manual	6	10	12	15	25	40
Pulling Speed(m/min)	0.1-1.4	0.1-1.5	0.1-1.5	0.1-1.5	0.1-1.5	0.1-1.2	0.1-1.2
Envelope (L*t)m	0.25*0.07	0.6*0.15	0.6*0.25	0.7*0.3	0.8* 0.35	1*0.5	1.2*0.5
Motor power (kW)	2.2 KW	2*3 kW	2*4 kW	2*5.5 kW	2*7.5 kW	2*7.5 kW	2*11 kW
Heating capacity (kW)	9.6	9.6	9.6	12	14.4	18	18
Size of heating board (p * L) m	0.85*0.4	0.85*0.6	0.85*0.6	0.85*0.6	0.85*0.7	0.9*0.8	0.9*1.2
Dimension (p * L) m	6.2*1.2	8.3*0.85	8.4*0.9	10*1.0	11*1.1	11*1.3	11.5*1.54
Total Weight	1.2	3	3.5	4	4.5	6	7
Recipient type	Drive Mechnical	Hydraulic

Detailed Photos
Company Profile
Certifications

FAQ
1. Q: Who are we?A: We are manufacturer, located Hengshui City Hebei Province, China, start from 2016, sell to Eastern Europe(20.00%), Africa(20.00%),Domestic Market(20.00%),South Asia(15.00%),Southeast Asia(15.00%),South America(5.00%),North America(5.00%). Welcome to send your inquiry!2. Q: How about the delivery time?A: Normally, 10-15 days after receiving the deposit to finish the order for a 20' container. Welcome to ask for the detailed delivery time according to your order quantity!
3. Q: What's the price of Mannheim Process Potassium Sulphate Making Machine?
A: Depends on annual output, welcome to inquire!4. Q: How can you guarantee the product quality?A: We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction beforepacking.5. Q: Can you do OEM for me?A: We accept all OEM orders, just contact us and give me your design,we will offer you a reasonable price ASAP.6. Q: What can you buy from us?A: FRP/GRP Pipe & fittings, FRP/GRP tank & tower, FRP grating, FRP pultruded profiles, FRP SMC water tank, FRP polymer electrolytic cell, S/F, F/F double wall underground fuel tank, FRP rebar, FRP pipe filament winding machine & technology, FRP tank filament winding machine & technology, FRP molded grating machine & technology, FRP rebar machine & technology, FRP pultrusion machine, FRP polymer electroytic cell machine & technology, Mannheim Process Potassium Sulphate Making Equipment & technology, FRP cable tray, FRP septic tank, Fiber reinforced plastic rod/core, etc,7. Q: What services can we provide?A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES;Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
