Airport Aircraft Maintenance Safety Equipmen Aircraft Lifting Airplane Jack Airbag

Product Description

Product Description Aircraft emergency rescue Lifting airbag is a professional aircraft accident rescue equipment.It is used when the aircraft has a tilt, the body touches the ground and so on need to lift and resume attitude operation.

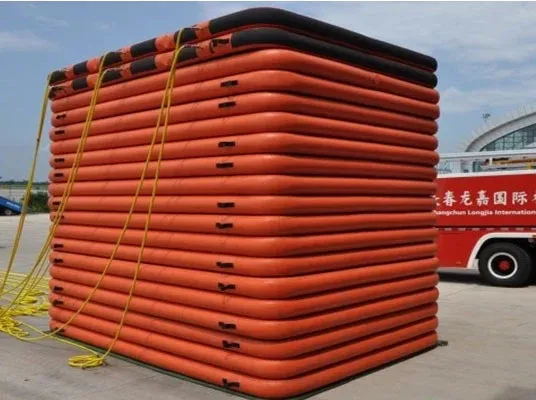

Detailed Images
Specification

Model	ZA-QN-5	ZA-QN-10
Airbag plane size, cm	100*100	140*140
Number of layers of airbag group, layers	5	7
Lifting height of single-layer airbag,cm	20	20
Lifting height of airbag group,cm	100	140
Rated load, kg	5000	10000
Rated working pressure, MPa/psi	0.05/7	0.05/7
Working temperature, ºC	60~-40	60~-40
Number of inflatable ports, pcs	5	7
Other	Specifications can be customized upon request

Features:
1. The jacking airbag adopts a rubber capsule structure, which effectively protects the aircraft body during use and avoids damage to the body.
2. The airbag adopts a single-layer airbag independent inflation design to ensure the stability and safety of the jacking.
3. There are non-slip adhesive buttons on the outer surface of the upper and lower layers of the single airbag. When the airbag group is jacked up to the rated load, it has sufficient anti-slip capability, and there will be no sliding or extrusion of the airbag.
4. The products use the most high-end materials and airbag processing solutions. Each set of products is processed and produced with the latest materials to achieve the best performance. The wear resistance, stability, aging resistance and weather resistance of the airbag are recognized by customers.
5. The applicable temperature range of the capsule is wide: -40ºC~60ºC.
