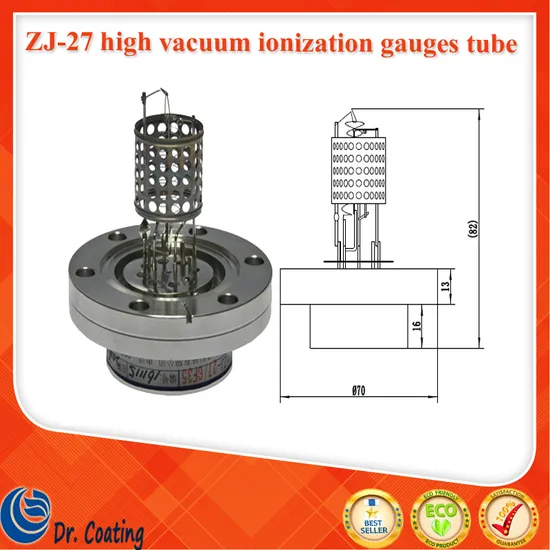

Vacuum Gauge Tube for Vacuum Metalizing Machine/Zj-27 Kf40 Gauge Tube

Product Description

vacuum gauge tube for vacuum metalizing machine/ZJ-27 KF40 gauge tubem metalizing machine
This type of regulation is a typical transistor structure, adopts precious metal oxide cathode, with the features of antioxidant, instantaneous atmospheric impact resistant, stable performance, long life, suitable for medium and high vacuum measurements, etc.

Main technical parameters:
Measurement range: 4~1×10-5Pa X-ray limit: <1×10-6Pa Regulate sensitivity: 0.15±15% Pa-1 Operating parameters: Filament voltage 1.3V
Filament current 2.5A
Gate current (emission current) 0.1/1mA
5. Joule (I2R) degassing
Gate voltage 11V
Gate current 3A
6. Vacuum connections form and baking temperature:
Φ15.5 ± 0.5 glass tube 80 °C
Φ15.5 ± 0.1 metal tube 80 °C
KF10 quick release flange 80 °C
KF25 quick release flange 80 °C
KF40 quick release flange 80 °C
CF16 ultra flange 450 °C
CF25 ultra flange 450 °C
CF35 ultra flange c450 °C
