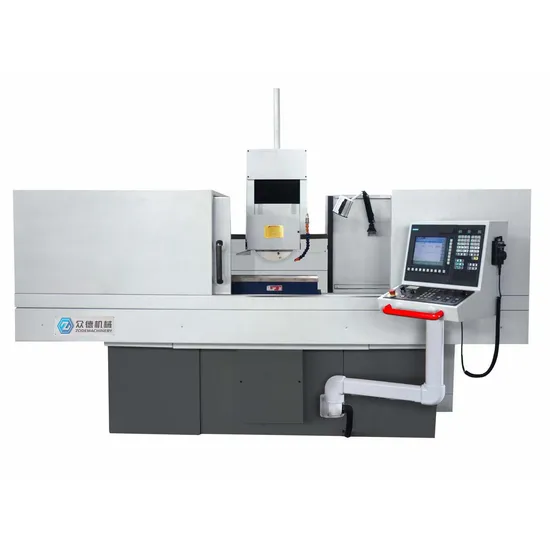

Surface Grinding Machine Sga30100ah Sga30100ahr Sga30100ahd
| US$10,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SGA30100AH SGA30100AHR SGA30100AHD
Type
Surface Grinding Machine
Processing Object
Metel
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
305X1020mm
Wheel Size
350X40X127mm
Longitudinal Travel
1130mm
Cross Travel
340mm
Auto Feed
0.1-8mm
Transport Package
Plywood Case
Specification
3490kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
8460190000
Production Capacity
10 PCS/Month
Product Description
HYDRAULIC SADDLE MOVING SURFACE GRINDER MACHINEThe surface grinding machine with pleasing appearance and well designed structure, the machine is an indeed precision grind
equipment for metal working. The well designed structure have good rigidity and keep the machine with high accuracy.Well designed
and carefully assembled Hydraulic unit make the table moves smoothly. The oil temperature increase low after long working.
SPECIFICATIONS:
| MODEL | SG2050AH SG2050AHR SG2050AHD | SGA2550AH SGA2550AHR SGA2550AHD | SGA3063AH SGA3063AHR SGA3063AHD | SG30100AH SG30100AHR SG30100AHD | SG4080AH SG4080AHR SG4080AHD | SG40100AH SG40100AHR SG40100AHD | |
| TABLE SIZE | 200*460 | 254*508 | 305*635 | 305*1020 | 406*813 | 406*1020 | |
| LONGITUDINAL TRAVEL | 510mm | 640mm | 765mm | 1130mm | 910mm | 1130mm | |
| CROSS TRAVEL | 238mm | 300mm | 340mm | 340mm | 450mm | 450mm | |
| MAX DISTANCE FROM SPINDLE CENTER TO TABLE | 450mm | 580mm | 580mm | 580mm | 580mm | 580mm | |
| SPEED OF TABLE LONGITUDINAL MOVING | 5-25m/min | 7-25 m/min | |||||
| TABLE CROSS MOVING | AUTO FEED | 0.1-8mm | |||||
| RAPID SPEED | 990mm/min | ||||||
| FEED OF HANDLE | 0.02mm/div. | ||||||
| WHEEL HEAD VERTICAL MOVING | AUTO FEED | (AHD) 0.005/0.01/0.02/0.03/0.04/0.05mm/stroke | |||||
| RAPID SPEED | (AHD/AHR) 460mm/min | ||||||
| FEED OF HANDLE | 0.01mm/div.(AH) 0.005mm/div(AHR/AHD) | ||||||
| GRINDING WHEEL SIZE | 200*20*31.75 | 350*40*127 | 50HZ: 400*40*127; 60HZ: 350*40*127 | ||||
| MAIN MOTOR | 1.5KW | 5KW | 7.5KW | ||||
| PACKING SIZE cm | 190*170*215 | 217*212*213 | 235*222*213 | 295*222*215 | 285*227*215 | 295*227*218 | |
| GROSS WEIGHT KG | 1800 | 2400 | 2800 | 3500 | 3800 | 4300 | |
