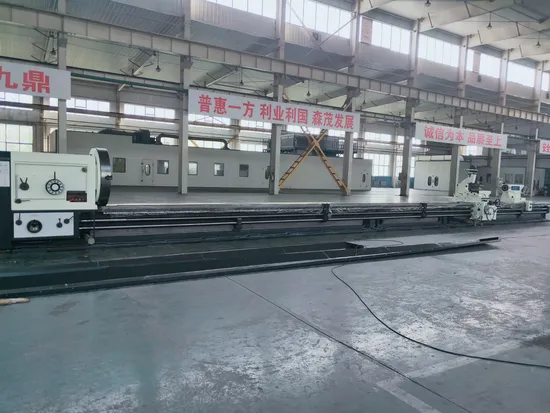

Cw61140h Horizontal Lathe Conventional Big Lathe
| Negotiable | 1 set (MOQ) |
Basic Info.
Model NO.
CW61140H
Type
Horizontal Lathe
Processing Accessory
Plate, Shaft, Pipes
Guide Rail
Horizontal Guide Rail
Tool Holder
Single Turret
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Swing Dia.Over Bed
1400mm
Max Workpiece Weight
20tons
Workpiece Length
1-20m
Transport Package
Wooden Case
Specification
CE
Trademark
preciion
Origin
Dezhou, Shandong, Pr. China
HS Code
84581900
Production Capacity
700 Sets/Year
Product Description
CW61140HThese lathes can perform to turn endfaces ,cylindrical surfaces and internal holes of various parts as well as metric, inch ,module and pitch threads. The top slides can be operated individually by power for cutting short taper surface also. It also can be turned automatically through the compound movement combining longitudinal feed with the top slide feed. Moreover ,the machines may be used for drilling ,boring and trepanning. The are characteristics of power ,high spindle speed and high rigidity. The various ferrous and non-ferrous metal parts may be turned through the heavy cutting by carbon alloy tools.
Main Specifications and Features
| SPECIFICATION | Model | ||||
| CW61140H | |||||
| Max.swing diameter over bed | 1440 | ||||
| Max.swing diameter over crossslide | 1050 | ||||
| Width of bed | 1100mm | ||||
| Max.length of workpiece | 16000mm | ||||
| Max. loading weight between centers | 20 tons | ||||
| Spindle nose | A15 | ||||
| Sindle bore diameter | 130mm | ||||
| Taper of spindle bore | Metric No.140# | ||||
| Range of spindle speed Dia. of front inner bearing of spindle | 3.15-315r/min 21kinds 3.5-290r/min 12 kinds 240mm | ||||
| Longitudinal feeds range | 0.1-12mm/r 56 kinds | ||||
| Transversal feeds range | 0.05-6mm/r 56kinds | ||||
| Metrec thread range | 1-120mm 44kinds | ||||
| Inch thread range | 3/8-28TPI 31kinds | ||||
| Module thread range | 0.5-60mm 45kinds | ||||
| Pitch thread range | 1-56TPI 25kinds | ||||
| Tailstock sleeve taper | Metric 80# | ||||
| Tailstock sleeve diameter | 280mm | ||||
| Tailstock sleeve travel | 300mm | ||||
| Main motor power | 30kW | ||||
| Rapid motor power | 1.5kW | ||||
| Coolant pump power | 0.125kW | ||||
Standard Accessories
1. Φ 1250mm heavy chuck for CW61125H and CW61140H, and Φ 1400mm chuck for CW61160H.
2. steady rest Φ120--480mm, 2-8m is mated with 1set and 9-12m is 2 sets and 13-16m is 3 sets.
3. Morse No.6 Center 1set
4. center sleeve 1set
6. tools 1set
7. Foundatin bolts 1 set
8. foundation screws 1set
Special Accessories special order
1 Φ 1400mm Φ1600mm four jaw chuck
2 steady rest Φ400-700mm,
3 follow rest Φ50-220mm
4 Roller support (opened steady rest)
5 NSK spindle bearing
6 levelers
