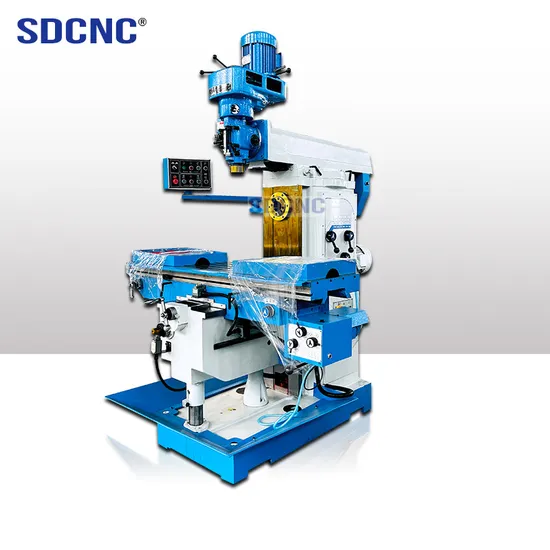

X6336 CNC Milling Universal Horizontal Cutter Manual Vertical Gantry Turret Milling Machine

Product Description

Detailed Photos

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's
Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign
trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining
center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling
machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine
series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed
and other machine tools.
Product Parameters

Specifications	Units	X6336
Table size	mm	1500×360
Table travel	mm	1000/320/450
T slot(number-width-pitch)	mm	3-18-80
Spindle taper		ISO40 7:24 (V) ISO50 7:24 (H)
Spindle speed range	rpm	(V) 50HZ:65-4500 , 60HZ:80-5440,16 steps; Optional:variable 65-4000 (H) 60-1800,12 steps
Spindle travel	mm	127
Spindle feed range	mm	0.04,0.08,0.15 (3 steps)
Distance between spindle nose and table surface	mm	140-590
Distance between spindle axis and table surface	mm	0-450
Main motor power	kw	3.7(V); 4(H)
Head rotation (left - right )	°	±90°
Head rotation (front - rear)	°	±45°
Weight	kg	2400
Overall dimension	mm	2600×2200×2550

The main performance characteristics:
X, Y, Z axis super audio hardened guide rail and high precision grinding
Manual lubricating device can be used to lubricate the lead screw and guide rail.
Special accessories: vertical milling head, it can achieve the function of vertical milling.
Product main technical parameters:
