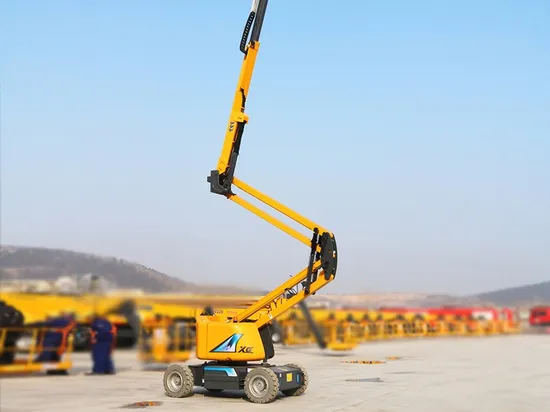

Chinese 16m Hydraulic Articulated Lift Mobile Elevating Aerial Work Platform Xga16
Basic Info.
Model NO.
XGA16
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Special Weight Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Rated Working Height
16.05m
Max. Platform Height
14.05m
Max. Working Range
8.22m
Total Mass
6900 Kg
Wheelbase
2.1 M
Max. Speed
6.12 Km/H
Working Platform Overall Dimensions
1.83*0.76*1.15 M
Platform Lifting/Lowering Speed
0.1~0.3m/ S
Transport Package
Comply with Export Packaging Requirements
Specification
6.69*2.26*2.13m
Trademark
Top Brand
Origin
China
HS Code
8427109000
Production Capacity
5000pieces/Year
Packaging & Delivery
Package Size
6.69cm * 2.26cm * 2.13cm
Package Gross Weight
6900.000kg
Product Description
Product Description16m Hydraulic Articulated Lift Mobile Aerial Work Platform XGA16
16M articulated mobile elevating work platform aiming to satisfy customers' requirements. Intelligent and perfect control system features the humanized layout, the maintenance-free design and easy use and maintenance, providing the multiple options and comprehensive safety.
Advantages and highlights:
* Σ-shaped boom, compact and flexible, able to ascend and descend vertically or extend horizontally to cross obstacles; the platform can turn 160°, creating a wider operation area; compact and narrow turntable eliminates tail swing and improves operation efficiency;
* Off-road chassis, 4W drive system, solid off-road wide tire, full-time axle balance system, 38kw power, excellent adaptation to any terrain. Work platform is enable to extend out, enlarging the work space, together with the foldable fence making the transportation easier.
* Full - range work; direct and friendly control panel easy to control; precise and effective electric-hydraulic proportional system Chassis tilting protection, platform overloading warning, emergent lowering, safety speed limit, flexible start/stop technologies.
Product Parameters
| Item | XGA16 |
| Parameters of traveling state | |
| Overall dimensions (L × W × H) | 6.69×2.26×2.13 m |
| Working platform overall dimensions | 1.83×0.76×1.15 m |
| Max. speed | 6.12 km/h |
| Max. gradeability | ≥30%(2WD) ≥45%(4WD) |
| Min. external turning radius | ≤4.5m |
| Ground clearance/m (centre) | 0.41 m |
| Wheelbase | 2.1 m |
| Total mass | 6900 kg |
| Main Operation Performance Parameters | |
| Rated working height | 16.05m |
| Max. platform height | 14.05m |
| Max. working range | 8.22m |
| Scope of luffing of No. 1 arm | 0°~60° |
| Scope of luffing of No. 2 arm | -9°~75° |
| Slewing angle | 355° discontinuous slewing |
| Slewing radius of turntable | 1.145 m |
| Max. Load capacity | 230 kg |
| Working speed | |
| Platform lifting/lowering speed | 0.1~0.3m/ s |
| Extending/Retracting speed of Boom No.2 | 0.1~0.3m/ s |
| Slewing speed | 0.5~1r/min |
Detailed Photos
