Knee Type Milling Machine Universal Drilling Milling Machine Zx6350A Zx6350za Zx6350c Zx6350d Zx6350z
| US$4,000.00-6,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX6350A ZX6350ZA ZX6350C ZX6350D ZX6350Z
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Layout
Vertical
Number of Shaft
3
Hole Diameter
<50mm
Transport Package
Plywood Case
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84595900
Production Capacity
10 PCS/Month
Product Description

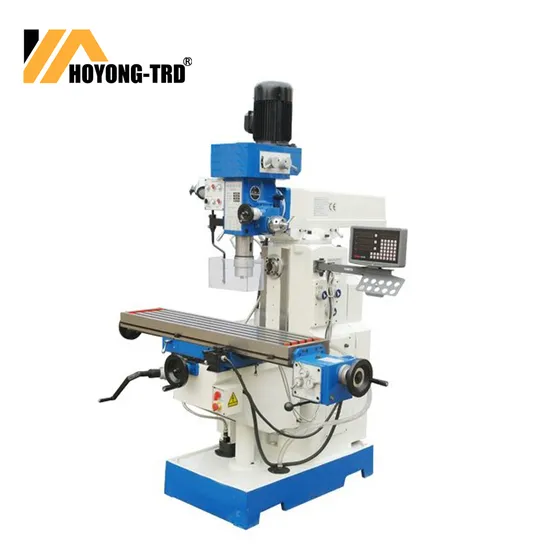

UNIVERSAL DRILLING MILLING MACHINE:
Gear driven; X axis auto feed
This model pass CE standard.
ZX 6350C is a kind of economic-type drilling and milling machine, light and flexible, is used for mechanical maintenance, non-batch parts processing
and components manufacturing.
The vertical head swivels to both sides (+-) 90
SPECIFICATIONS:
| MODEL | UNIT | ZX6350C |
| Spindle taper | M.T.4/ISO40/ISO30/R8 | |
| Distance vertical spindle to table | mm | 100-460 |
| Distance horizontal spindle to table | mm | 0-360 |
| Distance spindle to column | mm | 200-500 |
| Spindle seeds range | r/min | (8 steps)115-1750(vertical); (12 steps)40-1300(horizontal) |
| Automatic Feed Series sleeve | mm | 120(vertical) |
| Table size | mm | 1120×280 |
| Table travel | mm | 600/250/360 |
| Distance horizontal spindle to arm | mm | 175 |
| Table feeds range(x/y) | mm/min | 12-370(8 steps)(max.540) |
| T of table (no./width/distance) | mm | 3/14/63 |
| Main motor | kw | 0.85/1.5(vertical);2.2(horizontal) |
| Motor of table power feed | w | 370 |
| Coolant pump motor | w | 40 |
| N.W/G.W. | kg | 1250/1450 |
| Overall dimension | mm | 1660×1340×2130 |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
| 3-axis position indicator, 2 milling arbor (22, 27mm) ColletS set, drill chuck, mill chuck, Reduction sleeve, Work light, coolant. | DRO on X, Y, Z--AXIS Clamping kit Universal dividing head Rotary work table. |
