Safety and Reliability Cargo Lift Goods Lift Freight Elevator Used in Warehouse

Product Description

Safety and Reliability Cargo Lift Goods Lift Freight Elevator Used in Warehouse Product Description
Cargo lift lift,they also call it a freight elevator, cargo lift, warehouse lift, mezzanine lift,-whatever you want to call it, it rules at going straight up and down from one floor to another. XYZLIFT makes headlines all over the place because of their hydraulic lift solution that they customize to your specific needs. They hook you up with all sorts of different options, like:
Weight capacity from 300kgs to 50,000kgs
Will go as high as 18 meters
Will get as big as 10 meters by 10 meters
Goes up from 4 to 15 meters per minute
Most customer choose goods lift as below Six model.
Goods Lift Parameters

MODEL LIST	LOAD CAPACITY	LIFTING HEIGHT	PLATFORM SIZE
XYZGL1-2.7	1000KG	2700MM	1600*1600MM
XYZGL1-3	1000KG	3000MM	2000*1500MM
XYZGL2-3	2000KG	3000MM	2500*2500MM
XYZGL3-3	3000KG	3000MM	2800*3000MM
XYZGL5-7	5000KG	7000MM	4000*3500MM
Customsized	Tell us your parameters

Goods Lift Safety
Our commitment to safety and quality in the production of goods lifts is demonstrated through adherence to EN81-31 and the national standards of the Chinese elevator industry, alongside a quality management system that is compliant with ISO9001. These benchmarks ensure our goods lifts meet rigorous safety and operational standards on both a European and national level in China. By aligning with these standards, we aim to deliver goods lifts that are not only reliable and efficient but also prioritize the safety of users, reflecting our dedication to excellence in every aspect of our service.
Cargo lift Platform safety

Doors have a guard lock: If a door's open, the lift won't move. That door's got to be closed, bro. You open the door back up, I'm not moving the lift. No chance. You got to have the door closed. That's the bottom line.
Gate with interlock: There are electric and mechanical interlocks on the landing doors, so you can't open the doors while the lift is running. This is because you don't want something sneaking underneath the lift while it's moving.
Platform has an anti-skid floor: When you're in the lift, you don't want break-dancing tires. You want a floor you're not going to slip on. The floor of the lift is made of a non-slip steel plate. That way, there's traction between your cargo and the floor. Stuff on the floor doesn't just go back and forth in the lift. It stays in one place.
Platform that has sides on it: By standard, the lift has guardrails around the outside of it that are 1.2 meters high. You can have it raised up to 2.2 meters if you need that. You want it to conform around your freight.
Cargo Lift control safety

Emergency shut-off button: If there's an emergency or anything else unsafe, hit that button, and the lift will stop.
Final limit switch: Located above the top limit switch, protects against overtravel in case the top limit switch doesn't work.
Voltage protection: We got your back against voltage sags and spikes. That's built into the system, man. We know you probably got some funky electrical stuff going on. We don't want any of that to affect your lift. We make sure you're good to go.
Key switch to kill the power: We give you a key switch. If the wrong person's around, you can shut it down. They can't do anything with it. You got control over who gets in and out of your lift.
Cargo Lift Hydraulic System Safety

Overweight protection: The lift has a system that stops it if it's overloaded. You can't be lifting more weight than the system can handle. It won't move for you. That's safety first right there, bro.
Emergency descent valve: If you lose power, this baby's going to let you down to the nearest floor safely. You're not going to get stuck in the lift if you lose power.
Hydraulic cylinder with anti-explosion valve: If there's a problem with one of the hydraulic hoses, the lift's not going to drop. It's going to hold you up and keep you safe. You're not going to go crashing down to the ground if one of the hydraulic hoses breaks.
Pump station with protective case: Designed to protect the hydraulic system and keep rain and other crap out of it.
Entrance And Exit Optional
Different Instllation Site
Cargo lift suitable many different installation site, through floor, with pit or without pit, outdoor, near the wall etc

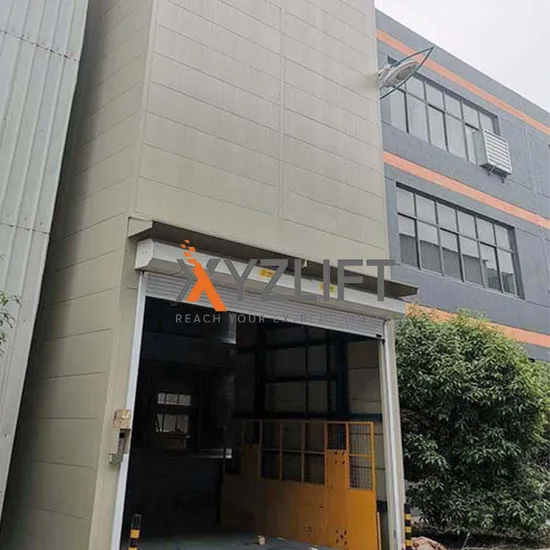

Goods Lift Project Show

More Custom Goods Lift
Goods Lift Package

How to get a quote?
Reply these simple questions
> Get a Fast Quote
Load capacity kgs
Platform size Width*Depth mm
Lift height H mm, how many stops?
With full mesh enclosed or not?
