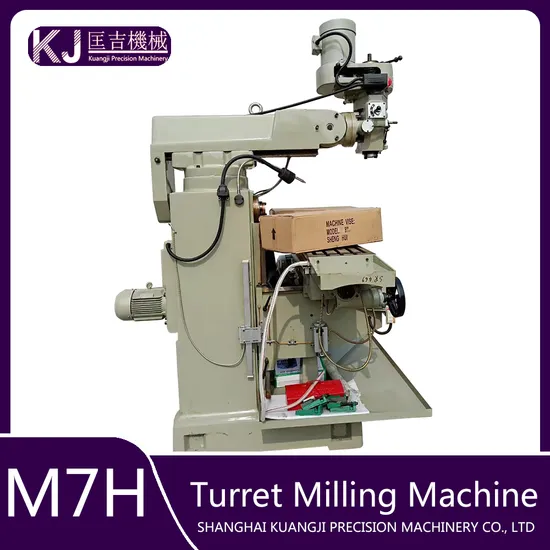

M7h High Precision Vertical and Horizontal Milling Machine Turret Type Metal Universal Milling Machine
| US$10,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M7H
Type
Tool Milling Machine
Object
Tool
Structure
Turret Type
Milling Cutter Type
Various Cutting Tools
Milling Cutter Structure
Various Structures
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Negotiate
Specification
1982mm*1827mm*2535mm, 3.1T
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
This machine can be widely used in the machining plane and any Angle inclined plane, can be milling slot, drilling, reaming, using special tools can also boring. The milling head can be rotated 90° left or right, 45° forward or backward, and the ram can be rotated 180° horizontally. The spindle has a high speed, and has a wide speed range, can realize automatic feed and overload protection safety device. The spindle sleeve and the machine tool guide rail are specially treated, and there are wear-resistant pieces between the table and the saddle, the saddle and the lifting table guide rail, which can reduce the friction between the sliding guide rail pair, extend the service life of the machine tool, and have a satisfactory appearance and a good structural design, which is an ideal universal equipment for metal processing.| model number | M4H | M7H | |
| name | |||
| able size | 1270*254 | 1370*330 | |
| Workbench Load (kgs) | 350 | 450 | |
| T-slots in operation (number - size * spacing) (mm) | 3-16*65 | ||
| Left and right stroke (X) (mm) | 820 | 1000 | |
| Front and rear travel (Y) (mm) | 400 | 410 | |
| Up and down stroke (Z) (mm) | 430 | 530 | |
| Horizontal spindle specification | NT30 | NT40 | |
| Number of horizontal spindle speed segments | 9 | ||
| Horizontal spindle speed (r/min) | 60,110,200,400,500,735,900,1320, | ||
| Minimum distance from the center of the horizontal spindle to the table | -30 | ||
| Horizontal spindle center to the maximum distance from the table | 390 | ||
| spindle taper | NT30/R8 | NT40 | |
| Spindle travel (mm) | 127 | ||
| speed of mainshaft | 16 velocity(steps)/variable | ||
| Spindle feed (mm) | 0.076/0.003 0.38/0.0015 0.203/0.008 | ||
| Spindle low speed (r/min) | 6,611,017,527,055,090,000,000,000 | ||
| Spindle speed (r/min) | 132,220,350,540,1100,1860,2920,4200,4540/ 60,5400 | ||
| Spindle diameter | 85 | 105 | |
| Distance from spindle center to vertical cylinder (min. mm) | 120 | 300 | |
| Distance from spindle center to vertical cylinder (Max. mm) | 720 | 900 | |
| Distance from spindle nose to table (min. mm) | 100 | 170 | |
| Distance from spindle nose to table (Max. mm) | 460 | 700 | |
| Voltage (V) | 380 | ||
| Frequency (HZ) | 50/60 | ||
| Head motor | 5HP/3.75KW | ||
| Cooling machine | 1/8HP | ||
| Horizontal spindle machine | 3HP/2.2KW | ||
| Lifting motor | 1/2HP | ||
| machine net weight | 2050kg | 3100 kg | |
| Overall dimensions of the machine (length mm* width mm* height mm) | 1800*1827*2300 | 1982*1827*2535 | |
