US$19,000.00-35,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Max. Swing Diameter Over The Bed
1250mm
Max. Swing Diameter Over The Tool Holder
860mm
Spindle Hole Diameter
130mm
Gear
New Manual Four-Speed
Width of The Guide Rail
700/755mm
Transport Package
Export Wooden Crate
Specification
4300*2400*2400
Production Capacity
150/Monthly
Packaging & Delivery
Package Size
4300.00cm * 2400.00cm * 2400.00cm
Package Gross Weight
11500.000kg
Product Description
Product Description
Horizontal CNC lathes are one of our company's leading products. These lathes feature a large spindle bore design, excellent bed rigidity, and a compact structure. The machines are capable of machining various shaft and disk parts, as well as turning threads, arcs, tapers, and complex internal and external curved surfaces of rotary bodies. They are particularly well-suited for industries such as automotive, metallurgy, and aerospace, offering efficient, high-volume, and high-precision machining of rotational parts.
Processing effect
Product Parameters
Number | Items | | CK61125(700) | CK61125(755)) |
1 | Max. diameter swing over the bed | mm | 1000 | 1250 |
2 | Max. diameter swing over the tool holder | mm | 780 | 860 |
3 | Max. workpiece length | mm | 1000,3000-100000 |
4 | Spindle hole diameter | mm | 105 | 130 |
5 | Tool holder | Optional | 4 station 280×280 | 4 station 300×300 |
6 | Chuck | Optional | 1000/1250mm 4-jaw |
7 | CNC system | Optional | GSK980TDi |
8 | Spindle speed steps | | Hydraulic four-gear Manual four-speed |
9 | Spindle speed range | R.P.M. | 1st gear 17-70 rpm 1st gear 20-80 rpm 2nd gear 38-155 rpm 2nd gear 50-200 rpm 3rd gear 75-293 rpm 3rd gear 100-330 rpm 4th gear 170-653 rpm 4th gear 220-7690 rpm |
10 | Motor | KW | 15 | 22 |
11 | Frequency converters | KW | 15 | 22 |
12 | Tail stock(tailstock spindle diameter) | mm | 140 | 140 |
13 | Width of the guide rail | mm | 700 | 755 |
14 | Cooling pump motor | K | 90 | 150 |
15 | Max.load capacity | T | 3 | 6 |
16 | Lenght/Weight | mm kg | 1000mm 5800kg 1500mm 6800kg 2000mm 7800kg 3000mm 8300kg 4000mm 9300kg | 1000mm 10100kg 1500mm 11500kg 2000mm 12900kg 3000mm 14300kg 4000mm 14700kg |
Product Details
We offer a full range of horizontal Trono CNC lathes, including small CNC lathe models such as CK0640, CK6140, CK6150, and CK6163, as well as medium and large CNC lathes such as CK6180, CK61110, CK61125, CK61140, CK61160, and CK61180. Please feel free to contact our sales team to determine the right lathe model based on your machining requirements.

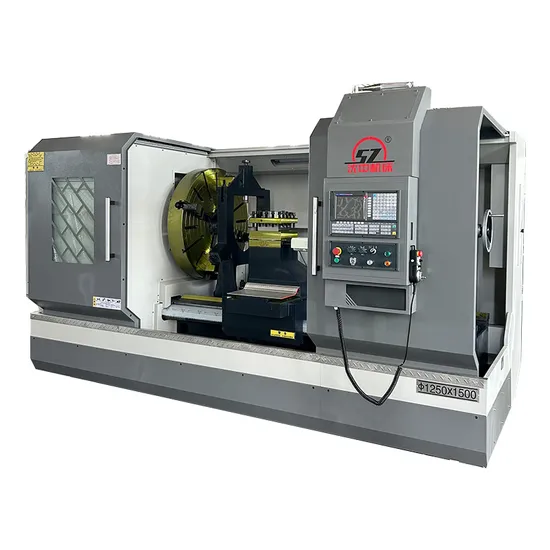

CK61125 heavy-duty CNC lathe is one of the leading products of our company's CNC machine tools. The spindle of this product adopts a large-diameter design, the bed has good rigidity and a compact structure.
1. High-rigidity bed
The bed of the CK61125 heavy-duty machine tool is made of high-quality cast iron, with a reasonable internal rib layout. The bed adopts an integral type, the guide rail is 755mm wide, and has good rigidity. The sliding guide rail adopts medium-frequency quenching, with a deep hardening layer and a hardness of more than HRC50°. The joint surface between the slide plate and the bed is plastic-coated.
2. Introduction to the main transmission
The spindle of this series of machine tools is manually shifted (4 gears) (frequency conversion), the spindle speed range is (I gear 15-50 II gear 40-125 III gear 80-200 IV gear 150-315 stepless speed regulation), large torque and good reliability.
3. Feed system
The Z-axis feed system of the machine tool adopts the transmission method of the servo motor driving the ball screw, and the X-axis feed system adopts the transmission method of the servo motor directly driving the ball screw through the coupling.
4. CNC system and servo drive system
The CNC system of the machine tool adopts Guangshu CNC system, which can adapt to high-efficiency, high-speed and high-precision machining, and has the characteristics of easy operation, complete functions and high reliability.
Company Profile
Xingtai Kuncheng Machinery Manufacturing Co., Ltd., established in 2016, is a modern enterprise specializing in the production and sales of general-purpose equipment. The company's main products include manual lathes, CNC lathes, forklifts, and packaging machines, which are widely used in various industrial manufacturing and logistics fields. Since its establishment, the company has adhered to the business philosophy of "quality first, customer foremost," continuously introducing advanced technologies and equipment to improve product quality and meet the diverse needs of its customers. With high-quality products and comprehensive services, Kuncheng Machinery has established a strong reputation and credibility in the industry.
Exhibition
Packaging & Shipping
FAQ
What is the nature of our company?
We are a factory that integrates manufacturing and sales. Not only do we produce machinery and equipment, but we are also actively expanding both domestic and international markets.
What is our company address? Do we support on-site visits?
Our company is located in Renze District, Xingtai, Hebei, China. Of course, we welcome you to visit our factory for an on-site inspection at any time.
What after-sales service do we provide?
We provide a one-year after-sales service. If you require on-site machine commissioning, we can also offer the corresponding service.
