Solar Panel Soldering Cell Tabbing Wire Ribbon Wire Tin Coated Copper Ribbons and Bus Wire PV

Product Description

Product Description

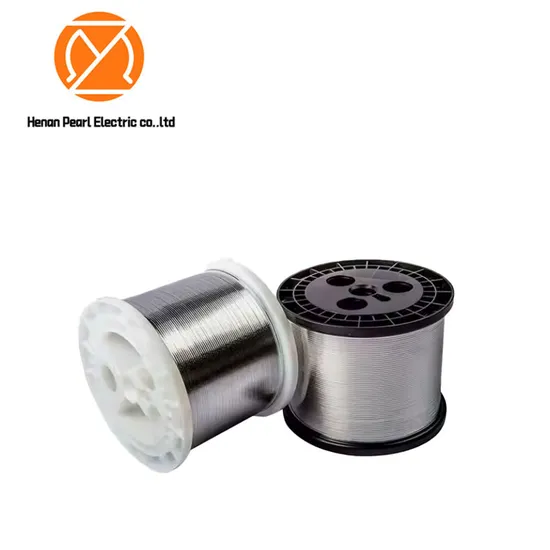

Solar ribbon
About PV Ribbon:PV ribbon is composed of Copper and coating alloys, and divided into Tabbing Ribbon and Bus bar ribbon.
Tabbing Ribbon: it is commonly connects the positive and negative sides of the cells in series.
Bus bar Ribbon: it is concentrate the cell stringing into junction box and channels electrical current.
Features and Applications:
The item (tin coated copper welding ribbon) is based on size of Width*Thickness: 1.5*0.2 mm (it also can be 1.5-2.5mm * 0.08-0.25mm as your option),sale as per lot, 2kgs/lot.
If you want buy more or less quantity, pls contact us, we will correct the price and freight cost for you.
Product Parameters

Product Number	solar panel welding wire
Copper base	Electric park copper wire rolling or T2 copper strip slitting
Copper substrate resistivity	ρ≤0.0172Ωmm2/m
Solder composition	62%Sn36%Pb2%Ag
Weight	1KGS 4kgs, 8kgs per spool
Application	Soldered solar circuit boards for
Flux Content	International Standard
Tin layer thickness	10μm - 40μm, uniform on both sides
Thickness tolerance	≤0.008
Package	accept OEM packing
Product specifications	Width 1.0mm - 2.5mm,Thickness of 0.08 mm - 0.25 mm.
Delivery Time	20-30days after payment

Application
1.Photovoltaic welding strip plays a role of connection and confluence in the productionprocess of modules.
2.The current of the cell sheet is exported through the welding process, and then the exported electrode is
effectively connected with the connection box through series or parallel connection
