Mars Furniture Cabinet Woodworking Automatic Tool Change Label Printer CNC Machine CNC Route Machine

Product Description

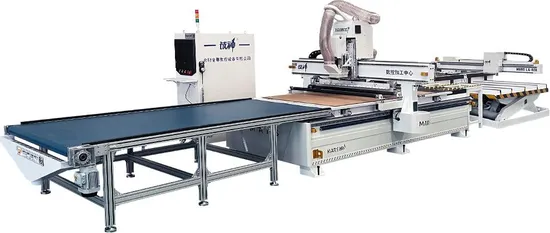

Model C Standard Woodworking CNC Machine/CNC Routing Machine

Keywords: 15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
Description:
Model C Standard Woodworking CNC Machine/CNC Routing Machine is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.
Functions:
The functions of this machine include plane cutting,milling,chamfering,punching,engraving and other anxiliary processing.
Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.
Application Scope:
Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings.

Applicable Scope
Processing	Be suitable for processing complicated products, with wide rage of functions, including drilling, side milling, etc.
Material	Acrylic, PVC, MDF(density board), artificial stone, organic glass, and other soft-metal sheets made of aluminum or copper
Application	Be widely used for panel processing, panel furniture, computer desk, office furniture, wooden speaker, wooden kitchen ware, customized wardrobe, modern cabinets, and so on
Strength	Easy operation, competitive price and functional processing for furniture production
	The machine control interface is designed to be user-friendly, fool-like operation, and the operator can be employed through simple training without the need for skilled workers

Parameters:

Model	Three-spindle Woodworking Engraving Machine
Working Stoke	2000mm*2500*160mm
Feeding Height	160mm-250mm
Table Structure	T-slot aluminum
Body Structure	Thick steel tube welded, w/ tempering
Spindle Power	1.5KW*3 frequency water-cooling spindle
Spindle Speed	0 ~ 24000 rpm/min
Engraving Tool	¢3.175/4/6/12.7mm
Control System	NC Studio/DSP
Drive System	Stepper motors & drivers
Lubrication System	Automatic
Transmission	X&Y axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin rectangular linear rail
Transformer	630VA
Max Travelling Speed	20m/min
Max Processing Speed	15m/min
Dictate Format	G code/ HPGL
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Working Environment	Temperature 0ºC ~ 90ºC, Humidity 30% ~ 75%
Working Voltage	AC380/ 3PH/ 50HZ
Net Weight	1500KG
Machine Size	3400*2300*1700mm

Accessories:
Performance Features:
1. Standard imported linear guide rail, strong loading capacity, smooth operation, high accuracy.
2. Z-axis ball screw drive, high-precision, high wear resistance.
3. Equipped with automatic lubrication system, centralized lubrication. Reduce customer maintenance workload, greatly extend the rail life.
4. Adopt famous brand frequency water-cooling spindle, great performance, big torque, high efficiency.
5. Adopt brand motor and driver, Y-axis double-motor drive, with faster speed and better stability.
6. Compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JDPaint/ Wentai, etc..

Samples:
