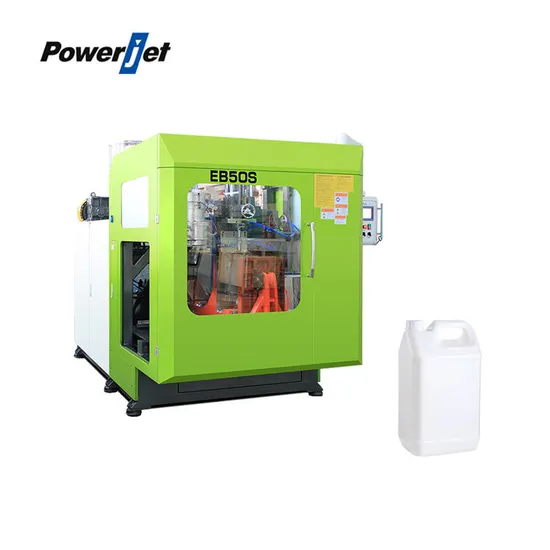

Powerjet Eb50s Extrusion Blow Molding Machine for PE/PP Bottle
Basic Info.
Model NO.
EB50S
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Certification
CE, ISO9001:2008
Clamping Force (Kn)
86
Product
5L Plastic Bottle
Name
Extrusion Blow Moulding Machine 1 to 5 L
Key Selling Points
Easy to Operate
Key Words
HDPE Extrusion Blow Moulding Machine
Machinery Test Report
Provided
Condition
New
Showroom Location
Egypt, Turkey, United Kingdom, United States, Fran
Video Outgoing-Inspection
Provided
Suitable Bottle
PP PE ABS HDPE LDPE
Product Name
Extrusion Blow Molding Machine
Machine Type
High Speed Blow Molding Machine
Plastic Processed
PP, HDPE, PC, ABS, PVC, Pet, PPR, PE, PA, PE/PP
Transport Package
Fixed in The Container with Wire Rope, Suitable Fo
Specification
CE standard
Trademark
POWERJET
Origin
Guangdong, China
HS Code
8477101090
Production Capacity
5000sets/Year
Product Description
Products DescriptionProduct Paramenters
| MODEL | UNIT | EB30S65S | EB50S75S-plus | EB70S75S-plus EB70SW75S-plus | EB120SW85S | EB180S90S | EB300S100S |
| Max.Product | L | 4 | 10 | 10 | 12 | 20 | 30 |
| Clamping Force | kN | 65/85 | 140 | 160 | 240 | 260 | 300 |
| Max.Mold Size(WxH) | mm | 400x355 | 480x430 | 580x420 | 730x450 | 600x500 | 850x780 |
| 480x460 | |||||||
| Screw Diameter | mm | Φ65 | Φ75 | Φ75 | Φ85 | Φ90 | Φ100 |
| Screw L/D Ratio | L/D | 25 | 24 | 24 | 24 | 25 | 24 |
| Screw Rotary Speed | RPM | 65 | 65 | 65 | 60 | 60 | 60 |
| Extrusion Weight(HDPE) | kg | 55 | 80 | 80 | 120 | 150 | 180 |
| Extrusion Motor Power | kW | 15 | 22 | 22 | 30 | 37 | 55 |
| Pump Motor Power | kW | 7.5 | 11 | 11 | 22 | 22 | 22 |
| Heating Capacity | kW | 17 | 19 | 19 | 21 | 27 | 35 |
| Operation Pressure | Mpa | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
| Air Consumption | m³/min | 1.0 | 2.0 | 2.0 | 3.0 | 3.0 | 4.0 |
| Cooling Water Consumption(25ºC) | L/min | 40 | 70 | 70 | 200 | 200 | 300 |
| Machine Dimension (LxWxH) | mm | 3800x2220x2400 | 4400x2120x2400 | 4450x2460x2700 | 4800x2500x2900 | 5200x2600x3100 | 6000x2800x3600 |
| Machine Weight | kg | 3300 | 5000 | 5500 | 7000 | 8500 | 10000 |
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2:Do you offer guarantee for the products?
A2: Yes, we offer 1 years warranty to our products.
Q3: Where is your factory located?
A3:POWERJET PLASTIC MACHINERY co., LTD. the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong ProvinceWe are warmly welcome you to visit us.
