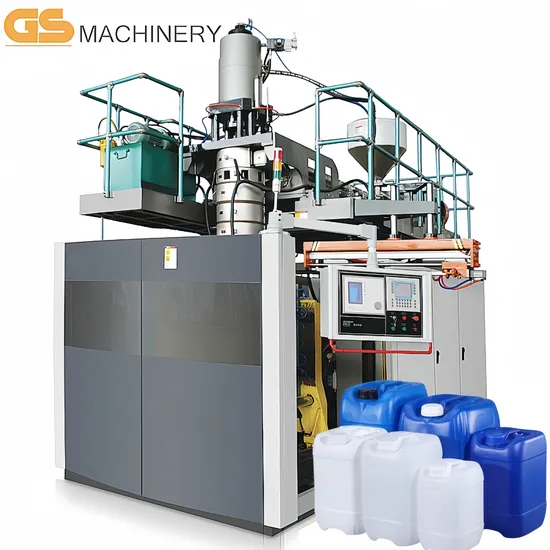

High Quality 10L-20L-25L-30L Plastic Oil Stackable Bottle Jerrycan Drum Production Blowing Molding Machines

Product Description

Product Description
GSB80 can produce various plastic components widely used in industry, agriculture, etc., including package for
chemicals, foodstuff, paints and medicines, plastic tool box, oil tank, hollow parts of car, interceptor, hollow seat, table-top,
big extruded toy, pontoon, plate, and big extruded pipe. With the output reaching 50-60 BPH, this machine is especially for itemswith PP and PE material. Max blow 30L containers, with accumulator die head.
Its control system adopts closed loop control imported from Europe and hydraulic system is pressure-flow double proportional
control equipped with variable plunger pump to ensure fast and smooth operation of the machine and energy consumption of the
hydraulic system can be reduced by 30% or above, saving considerable electricity.
If you have other special requirements,we can provide customized services for you.
Setting:
Clamping: Double station +High-precision guide +large arm cylinder axle
Extrusion system: Hard gear surface reducer +Japan inverter
Die system: Central-incoming extrusion die with special steel
Hydraulic system: Japan hydraulic valve seal and proportional control
Control system: Japan PLC +Imported HMI+PLC automatic WITH SERVO MOTOR SYSTEM FOR OPTION, REXROTH (Germany) or Delta+phase brands, saving 30-60% The maximum blow volume is 30L, PE, PP, EVA , TPU, etc. can be used. 2. Taiwan DELTA servo system, could save energy consumption 20% for option
3. Different screws and die mandrels, channel styles will be designed based on the specifics of different plastics;
4, It is convenience to refueling, change color, purge, disassembly and cleaning with those die head. Symmetry part of the wall thickness is very uniform;
5, Double proportional valve control oil flow and pressure, directional valve control flow way, deceleration valve brakes, achieve smooth and fast action;
6, mold carriage is with high-precision linear railway guide, every part of template bears the similar clamping force,
7, Extruder platform can be lifted, easy to adjust the parison length
8. Whole blow pin frame could be turned over onto top platform, convenient for mold change.
9, Design is based at CE safety standard, concerning about user safety;
10, Inverter is from Taiwan DELTA, adjust the screw speed, saving energy ;
11, automatic lubrication system, automatic alarm function, more concerned about the user;
12, Equipped with high temperature alarm function.
MACHINE ADVANTAGES
1. with well-known liner guide rail from Taiwan; great clamping force and explosion-proof;
2. patented die head, easy for changing color.
3. Computer intelligent control system, operation, set and modify the production process conveniently
4. Deep mirror treatment is used inside the die head, curve flow channels are smooth, no dead ends, no carbon left;
5. Strengthened and hardened cold treated screws, screw and barrel are with wear resistance; parts of tube wall thickness are very uniform
6. Various components are produced with Japan's CNC machine tools, use Mazak to process six-sided installation surfaces at the same time. Imported well-known brands Hydraulic, pneumatic and electrical parts are equipped to ensure that the rigorous process, stable and reliable quality. Detailed Photos
Product Parameters
Product details
Clamping frame
with patent design of fixed bi-directional synchronous clamping system driven by hydraulic oil, which makes it easy to take out the products and to change the mould.GSB series is capable of processing container of large volume with average distribution of clamping force and precise joint close.
Accumulator Die Head
>>Head mode: the accumulator extrusion head is designed double lips torpedo type die head with individual flow control valve;
>>Deep mirror treatment is used inside the die head, curve flow channels are smooth, no dead ends, no carbon left;
>>convenience to refueling, change color, purge, disassembly and cleaning with those die head.
>>Symmetry part of the wall thickness is very uniform;Head mode: the continuous extrusion head is designed double lips torpedo type die head with individual flow control valve;
Electrical System
>>World famous brands like SIEMENS, OMRON, MINGWELL etc, fully-guaranteed machine preformance and liftspan.
>>Inverter is from ABB or Taiwan DELTA, adjust the screw speed, saving energy .
CONTROL SYSTEM>>SIEMENS color touch screen, more easy on operation. with user's native language for option.
>>MOOG 200 Points parison controller used for product wall thickness control precisely for option
ADVANCED SERVO SYSTEM >>Servo motor +servo pump are optional. Saving 30--40% power consumption. >>HIGH efficiency, HIGH speed, Lowest noise!
HIGH QUALITY BLOW MOLDS
>>design drawing, manufacturing mold parts, assembly together by 20 years skillful technicians, testing molds on our machines, make sure running goods before shipment.
>>high quality mold material, such as P20, Aluminum, BeCu, for better finished product;>>Mold design with optimized cooling system, help to reduce cooling time, increase production speed.Mold with deflashing, automatic running condition
After Sales Service
-Installation & testing
A technician shall be sent to test the machine till it can work normally upon buyer's notification when everything is ready for installation and testing. The buyer shall bear all the charges involved since the technician leave off seller's company till he gets back, charges including transportation expenses, visa fee, accommodation, and insurance, etc. If the technician is required to go abroad, USD 120/day shall be charged as the service fee within the same time period stated above.
-Warranty & Guarantee
We provide 2 years guarantee since machine is running normally at buyer's factory.
The seller shall deal with all the problems due to the quality of the machine within the guarantee
period, with the damaged parts (unit price > USD 50) sent back for new ones.
Our company act strictly according to the requirement of ISO 9001 quality system with every spare part registered before shipment so as to assure prompt service.
24hours online for technical support
