Highsun Machinery CE Standard High Response New Style Servo Energy-Saving Plastic Injection Molding Machine Hxm2200
| US$19,000.00-462,540.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HXM2200
Structure
Horizontal
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Energy Saving
Servo Energy Saving
After Sakes Servuce
Engineers Available to Service Machine
Voltage
380V/50Hz, According to Countries
Showroom Locate
Malaysia, Russia, Turkey, Uzbekistan
Condition
New
Injection Weight
18290 G PS
Space Between Tie-Bars
1800*1620
Machine Weight
155 Ton
Moving Mould-Plate Stroke
1950 mm
Transport Package
Standard Package
Specification
6.50x1.75x2.08
Trademark
Highsun
Origin
China
HS Code
8477101090
Production Capacity
7000 Sets / Year
Product Description

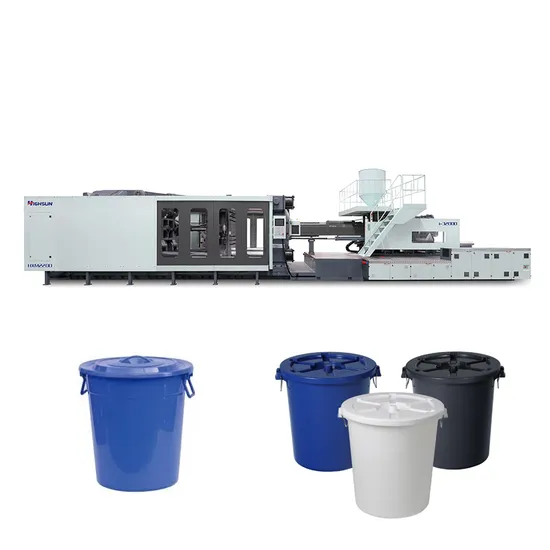

1.Picture| MODEL:HXM2200 | ||||||
| TECHNICAL PARAMETER TABLE | A | B | C | |||
| INJECTION UNIT | SCREW DIAMETER | mm | 155 | 165 | 175 | |
| SCREW L/D RATIO | L/D | 23 | 22 | 21 | ||
| INJECTION CAPACITY IN THEORY150130112882 | cm3 | 17737 | 20099 | 22609 | ||
| INJECTION WEIGHT(PS) | g | 16140 | 18290 | 20574 | ||
| oz | 569.3 | 645.1 | 725.7 | |||
| INJECTION PRESSURE | MPa | 181 | 160 | 142 | ||
| INJECTION RATE | g/s | 1284 | 1455 | 1637 | ||
| PLASTICIZING CAPACITY | g/s | 100 | 115 | 135 | ||
| SCREW SPEED | rpm | 66 | ||||
| CLAMPING UNIT | CLAMPING FORCE | KN | 22000 | |||
| MOVING MOULD-PLATE STROKE | mm | 1950 | ||||
| MAX. MOULD HEIGHT | mm | 1700 | ||||
| MIN. MOULD HEIGHT | mm | 780 | ||||
| SPACE BWTWEEN TIE-BARS (W×H) | mm | 1800*1620 | ||||
| HYDRAULIC EJECTOR FORCE | kN | 520 | ||||
| HYDRAULIC EJECTOR STROKE | mm | 450 | ||||
| EJECTOR NUMBER | n | 33 | ||||
| OTHERS | PUMP PRESSURE | MPa | 17.5 | |||
| MOTOR /DRIVING POWER | KW | 38+38+47+47 | ||||
| HEATING CAPACITY | KW | 110 | ||||
| MACHINE DIMENSION (L×W×H) | m | 19.4*3.9*5.1 | ||||
| MACHINE WEIGHT | t | 155 | ||||
| OIL TANK CAPACITY | L | 2270 | ||||
Product Advantages:
a. Super energy saving
Output power varies with the load, and no energy is wasted. In the holding pressure phase, the servo motor will reduce speed, with low energy consumption; during the cool-down period, the motor does not work, with zero power consumption. Compared with the ordinary injection molding machines, it can save 20%-80% of the power.
b. Hiigh precision and high stability
Equipped with the precise pressure sensor and rotary encoder, it can respectively monitor and feed back on flow and pressure. Based on the feedback, the high performance synchronous servo motor will adjust flow and pressure accordingly by changing the speed and torque. The closed-loop control can ensure the stability of product quality.
c. High response and high efficiency
The driving system responses with high sensitivity . It takes only 0.05 seconds to reach maximum value. The response speed is much faster than the ordinary injection molding machines. In that way, it significantly shortens the cycle time and increases the production efficiency.
2.Application
3.Processing,assembling production line
5.Loading containers
6. Customer case
Client in China produce shoe for several famous companies
7.Client in Malaysia
