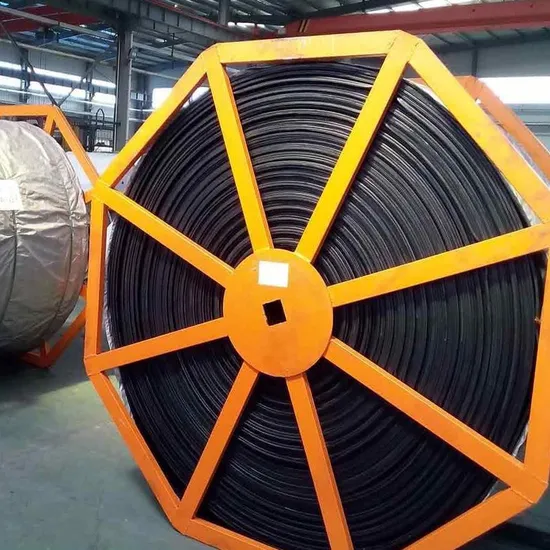

High Quality Polyester Fabric Conveyor Belt for Industry

Product Description

Product DescriptionApplication:Under condition of mid-distance, high speed and shock resistant capacity.
Characteristics:
Low load elongation;
Good flexing capacity, good trough ability;
Shock resistant and long working time;
Water resistant, no change in different moisture condition, Heat resistant;Product Parameters

Tensile strength(N/mm)	canvas type	Belt width	the layer number of canvas	Cover thickness mm		Weight Kg/m²
				top rubber	bottom rubber
200-1000	EP-100	300-2200	2-10	3.0 4.5 6.0	1.5 3.0	1.4012
400-1200	EP-200	300-2200	2-6	3.0 4.5 6.0	1.5 3.0	1.5685
500-1500	EP-250	500-2200	2-6	3.0 4.5 6.0	1.5 3.0	1.6605
600-1500	EP-300	500-2200	3-6	3.0 4.5 6.0	1.5 3.0	1.6839
800-2400	EP-400	800-2200	2-6	3.0 4.5 6.0	1.5 3.0	1.8059

EP polyester has the characters of high tension strength, small elongation, so it is more widely used in different industries, than the other fabric material. According to the different working conditions, we can choose different rubber cover quality and different EP material. Normally, the rubber cover quality can be 10MPA, 12MPA, 15MPA, 18MPA, 24MPA, and the inner fabric material can be EP100, EP125, EP150, EP200, EP250, etc.
Detailed PhotosWe manufacture
Polyester conveyor belt, (EP)Nylon conveyor belt, (NN)Cotton conveyor belt, (CC)Sidewall conveyor belt (SW)Steel Cord conveyor belt ( ST )Chevron conveyor belt, (C5 C10 and C15)Oil Resistance conveyor belt, (OR and MOR)Hot Resistance conveyor belt, (HR)Fire Resistance conveyor belt, (FR/PVC/PVG)Heat Resistance conveyor belt, (HR/ FR)Cold Resistance conveyor belts, (CR)Pattern conveyor belt ( 30+ Moulds)Metal Mesh conveyor belt (Heat resistant temp until 800c)Endless belts
Certifications
Packaging & Shipping
Company Profile
Our Company is the High-end Conveying Equipment brand ,with excellent technical team and in house intellectual property & national patents,developing intelligent conveying machinery. Our company is mainly engaged in the manufacture, sales and technical services of belt conveyors, large angle belt conveyors, horizontal curved belt conveyors and long distance crossing conveyors. Our products can be used in metallurgy, building materials, electric power, coal, port and other industries, products have been covered the whole domestic market, and exported to the United States, Germany, France and other EU countries, Australia, Brazil, along the Belt and Road countries, Southeast Asian countries and African emerging markets, totally more than 50 countries, gained the customers' praise.
Quality Control
1. Surface Inspection
Width measurement Length measurement Thickness measurement Surface inspection
2. Lab Inspection
Adhesion strength test Tensile strength test Abrasion test Elongation test Especial test according to customer's requirements
FAQAre you a manufacturer? Yes, we have manufactured conveyor and conveyor components for more than 19 years.
2. What's the delivery time? About 10--30 Days according to the products quantity.
3. What are the payment ways? T/T, L/C.
4. How does your factory guarantee the products quality? Before delivery, we have five times inspection.
