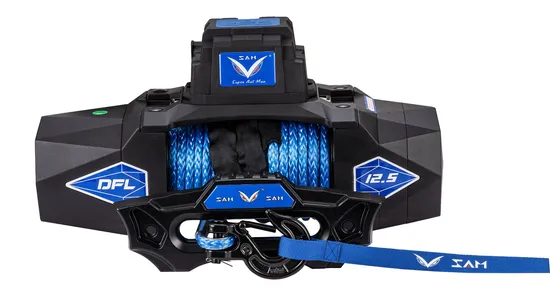

13000lbs Auto Winch 12V with Electric Clutch for off Road 4X4
| US$280.00-310.00 | 15 Pieces (MOQ) |
Basic Info.
Model NO.
D12.5
Pull Direction
Forward
Electric Winch Model
Zhme
Working Voltage of Electric Winch
Low Voltage
Brand
Zhme
Applicable Environment
Mountain Road
Certification
CE, RoHS
Product Name
Electric Winch
Rated Line Pull
13000lbs
Waterproof
IP68
Rope
10.5mmx26m
Fairlead
Hawse Fairlead
Packing
630mmx220mmx395mm
Transport Package
1 Set Per Carton, 15 Cartons Per Pallet
Specification
CE, ROHS, ISO9001
Trademark
ZHME(can be OEM)
Origin
Ningbo, China
HS Code
84253190
Production Capacity
10000 Winches Per Month
Packaging & Delivery
Package Size
63.50cm * 22.00cm * 39.50cm
Package Gross Weight
31.000kg
Product Description
13000lbs auto winch with electric clutch for off road 4x4 Product Description Inspired by the unparalleled strength and beauty of a diamond, the ZHME DFL series stands as the epitome of winch innovation and versatility. "DFL", echoing the highest grade of a diamond, symbolizes our commitment to excellence in design and performance. Efficient 5-inch Motor: Compact yet 10% more powerful Electric Clutch: Enhances operation, making challenging tasks feasible Flexible Mounting Options: Covertible control pack for diverse setups Dual Control Modes: Convenient wired and wireless remote controls IP68 Protection: Ensures maximum durability against elements Rope Choices: Available with wire rope and roller fairlead or synthetic rope and hawse fairleadChoose ZHME DFL for unparalleled power in a flexible, user-friendly package-your solution for every off road challenge.
Product Parameters
| Rated line pull: | 12500 Lbs (5681kgs) single line. | ||||||
| Motor: | Series wound 7.2 hp /5.3kw,12V DC | ||||||
| Gear Train: | 3 stage planetary | ||||||
| Gear ratio: | 276.:1 | ||||||
| Clutch: | Electromagnetic clutch | ||||||
| Braking action: | Automatic in the drum | ||||||
| Fairlead: | 4 way roller fairlead / Hawse fairlead | ||||||
| Wire rope: | 9.5mmx26m | ||||||
| Synthetic rope | 11mmx24m | ||||||
| Drum size: | 2.5"×8.9"(63mm×220mm) | ||||||
| Dimensions: | 555mmx182mmx189mm | ||||||
| Mounting bolt pattern: | 10"×4.5"(254mm×114.3mm) | ||||||
| Battery | Recommended 650 CCA minimum for winching 25 square mm,72″(1.83m) | ||||||
| N.W: | 70lbs(32kgs) | ||||||
