Hot Sale Aluminum/UPVC Profile Double Head Cutting Saw/Aluminium Window Door Double Mitre Saw/ Window Making Saw

Product Description

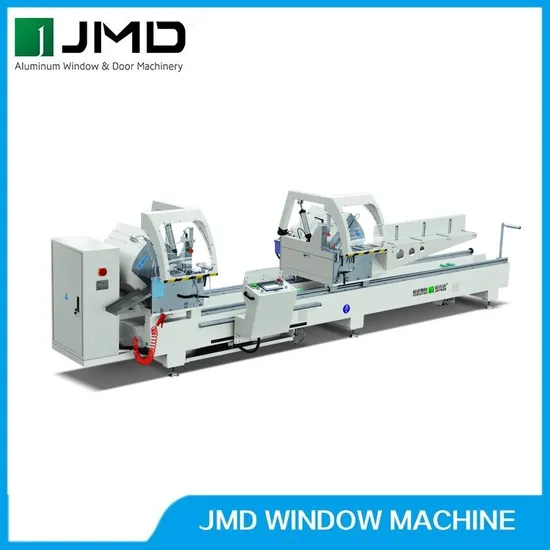

CNC Aluminium Cutting Machine
LJJ2AS-500*4200
1.Machine Introduction:
1. The imported digital control system ensures the precise cutting size
2. The imported ball screw rod drives the machine to move horizontally with precise repeat orientation.
3. You can set a series of data to realize the continuous cutting according to the preset programme.
4. Adopt imported carbide saw blade and cutting feed motion guide rail is imported linear guide rail pair.
5. The blade feed is powered by the hydraulic damping cylinder.
6. Wide cutting range max length up to 4200mm three cutting angle 90°/45°. 2.Aluminium Cutting MachineTechnical Parameter

Power supply	380V/3Phase/50Hz
Input power:	6kW
Air pressure:	0.5~0.8Mpa
Saw blade rotating speed:	2875r/min
Saw blade specification:	500*4.4*3.3*30*120p
Cutting length:	320~4200mm
Max cutting width/height:	135mm/ 300mm
Overall dimension:	5560*1750*1900mm
Cutting angles	90°,45°
Weight	1900Kg

3. Detail Cutting Machine Photos
3.Associated aluminium cutting machine
4.Our Team
5.Our Factory
Shandong JMD Machinery Co., Ltd is a leading manufacturer specializing in design and manufacturing of aluminum and wood window & door machines /aluminium cutting machine in China.Established in 1999, JMD started the business of supplying machining parts for window machine manufacturers.
Few years later, we built our own R & D team and started to produce the complete aluminum window & door equipment such as double mitre saw, corner crimping machine, copy router, end milling machine, corner connector cutting machine and aluminum punching machine, etc. In 2012, JMD became one of the top-10 suppliers of aluminum window & door machines in China.
In 2013, JMD designed the first generation of aluminum profile automatic cutting machine. Now, the 3rd generation, model LJGS-CNC-500x6000 is one of the most successful aluminum profile cutting machine in China.
In 2014, JMD launched the first wooden window production line in China. From then on, Chinese window plants started to make first-class Aluminum-clad wood windows and doors with machines of Chinese brand.
Today, JMD has 230 employees and over 130sets of sophisticated processing equipment( including CNC processing center, milling machine, grinding machine, planners, lathe machine, wire cutting machine, welding machine and bending machine, etc. Our well-trained after-sales team and large parts warehouse support us to provide the best service in shortest time.
We'll always combine a love for machines with creativity, an understanding of windows & doors, and a passion for discovering better ways to do everyday tasks. Look forward to working with you soon!
6.Our Clients
7.Why Us
1. We have more than 20 years of production and manufacturing experience in doors and windows machiniery
2. Top 3 door and window machine manufacturers in China
3.230 staffs professional team
4. Export to more than 40 countries
5 Covering an area of 300 mu
6. More than 3000 sets production per year
7. Cutting center Leading brand in China
8.We accept certification BV/CAS/SGS/CE ,etc.
8.Delivery
