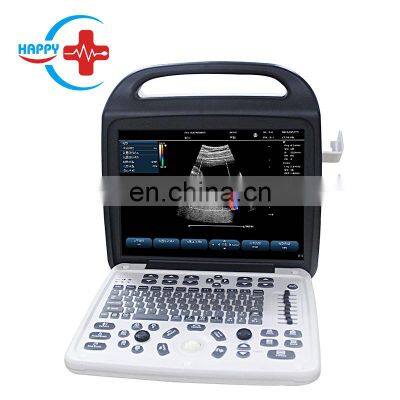

HC-A012 High resolution 15 inch LCD PW Function Ultrasound/Portable Color Doppler Ultrasound scan

Product Description

Product Description
HC-A012 High resolution 15 inch LCD PW Function Ultrasound/Portable Color Doppler Ultrasound scanProduct DescriptionFeatures for HC-A012 High resolution 15 inch LCD PW Function Ultrasound/Portable Color Doppler Ultrasound scan: Imaging Modes: B, B/B, B/M, M, 4B, C, PDI, PWScanning mode: Convex, Linear, EndocavityGray scale levels:256Display:15 ’’ high resolution LCD monitorTransducer Connector:2 standardScanning depth: up to 351mmPhysical channels64Transducer element128Dynamic imaging technologies: Digital Beam-formingDigital Frequency ScanDynamic Receiving focusingDynamic Receiving apodizationReal-time Dynamic ApertureImaging processing:Pre-processing:8-segment TGC adjustment, Dynamic range (0-100), Frame correlation (0-7), Edgeenhancement (0-7), Line density (High/Mid/Low)Post-processing: Gray scale (0-14), Scan angle up to 150, left/right reverse, up/down reverseFunction:Zoom: 10 timesCine loop: up to 6400 framesHDD 500GB Standard Configuration:15" high definition LED monitorTwo transducer connectorsBack lit control panel8-segment TGC982-frame cine loopIntegrated 500GB Hard diskInternal lithium Battery Supporting normal diagnosis up to 1.5 hoursInverted Harmonic ImagingPseudo color imaging modeAnnotation library for quick commentGraph/text report functionDICOM storage SCUUser defined exam settingsUser defined parameters capture (Acquire Set)Intuitive soft key at the bottom of screen, clicking supportedBeam steering for better needle visualizationPatient information management systemFetal trending--Fetal growth curve graphLithotripsy function supportedBiopsy function supportedSupport polyembryony measurement up to sixIntuitive context dependent soft keyUSB image transfer and software upgradeLanguage of UI: Chinese, English3C6C convex array transducer(2.5/3.5/4.5/H5.0/H6.0MHz)Software function:General Measurement: distance, circumference, area, (trace/ellipse), volume, etc.Calculation package: abdomen, cardiac, gynecology, obstetrics, urology,, small parts (thyroid), etc.Peripheral Ports:Two Transducer PortsTwo USB PortsDVI (to connect to external monitor or projector)RemoteVideo OutputS VideoLANPower Input PortFoot switchOptions:3C6C convex array transducer (2.5/3.5/4.5/H5.0/H6.0MHz)7L4C linear array transducer (6.5/7.5/8.5/H9.0/H10MHz)6E1C endocavity transducer (5.0/6.5/8.0/H8.0/H9.0MHz)8L4C high frequency linear probe6C1C micro convex probe6I7C rectal linear probeNeedle-guided bracketsHome charger and CarargerWireless data transfer functionUSB water-resistant footswitchMobile trolleyWheeled transport caseOthers:Net weight: Approx.8.5 kgPower supply: 100~240VAC, 50Hz/60HzDimensions: 400mm×394mm×17 Pictures for HC-A012 High resolution 15 inch LCD PW Function Ultrasound/Portable Color Doppler Ultrasound scan: Packaging & Shipping Company Information Clients and projects Our Services
