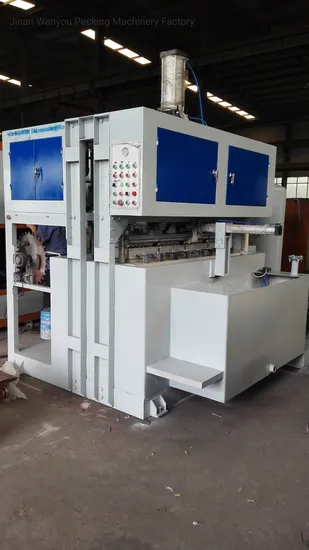

Reciprocating Paper Pulp Egg Tray Molding Making Machine

Product Description

Reciprocating Paper Pulp Egg Tray Molding Making Machine
The egg tray machine is a key product at nowadays global market . It is a very useful machine which can bring considerable profits in the short run for the investors. The egg tray is an egg container or holder that can protect eggs from breaking while placing or transporting. The Egg Tray machine takes waste paper, newspaper, and waste carton as the raw materials to produce egg trays, egg box, apple trays and shoe trays, etc.
Egg Tray Machine Flow-chart:
Raw material--hydrapulper-- Pulp mixing--Forming--Drying-- Hot Press--Packing--Stock
Raw Material:
1. Waste paper :Such as cardboard, cardboard boxes, newspapers, paper mills and other waste paper2.Pulp board :Pulp board made of straw, bagasse, bamboo, wood and other raw materials3.Plant Fibres :Palm fiber, straw, sugar cane and so onFinished product: All kinds of egg tray, egg box, fruit tray, wine tray, cup tray, shoe tray, sprinkler tray, etectronic product tray ect.
Egg Tray Machine Pulping System
The raw material goes into the pulping system, mixing with water, become the paper pulp.
Egg Tray Machine Forming system
the paper pulp will be sent into the egg tray forming machine by a pump, the Pulp tray forming machine will produce the trays using vacuum forming principle.
Drying system Boiler(Natural Gas Fuel) for Metallic Dryer oven
The pulp tray that coming out from the forming machine is wet, so the forming system needs to be equipped with the drying system.
Egg tray molding area.
Certificate of egg tray machine
End Products Of Paper Egg Tray Machine
Paper egg trays are the end products of egg tray plant. Egg trays are good protection shell for eggs during transporting and storage. Usually, the egg trays has 30 holes. Esle, there are 10 holes egg trays, 12 holes egg trays, 24 holes egg trays etc. What's more, if you change the mould, the machine can be used to make apple trays, egg cartons and so on.
Raw materials to make egg trays: original wood pulp, craft paper, A4 paper, paper box, old newspaper, old books and other kinds of recycled papers.
Delivery
Technical Specification of Paper Egg tray machine

Egg Tray Mold Quantity		2pcs	3pcs	4pcs
Raw material		Waste paper	Waste paper	Waste paper
Egg tray Capacity(pcs/hour)		700	1000	1300
Net weight per piece (gram)		70-75	70-75	70-75
Waste paper consumption		0.06ton / h	0.1ton / h	0.13ton / h
Water Consumption		0.15ton/h	0.22ton / h	0.3ton / h
Natural Gas Consumption of Dryer		25cbm/h	45cbm/h	60cbm/h
Boiler model (natural gas fuel Kcal)		300*103	450*	600*103
Worker requirement		3-4workers	4-6workers	4-6workers
Power Requirement	Without dryer	30KW	40KW	45KW
	With dryer	45KW	60KW	65KW
Area of workshop	Without dryer	More than 100 M²	More than 120 M²	More than 150 M²
	With dryer	More than 240M² dryer-16M	More than300M² Dryer-16M	More than 320 M² dryer-18M
Container Requirement	Without dryer	20ft*1	40ft*1	40ft*1
	With dryer	40ft*2+20ft*1	40ft*3	40ft*3
Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client's plant. 3. The above specification is for reference only, due to continuous technology development, data will be updated from time to time. 4. Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer. 5. Welcome to contact us anytime, our professional team will provide more effective help and supports for you.

Payment Terms
Trade terms		FOB Qingdao
Quotation Validity time		Within 30days
Delivery time		Depends on final egg tray machine capacity type
Payment term		BY T/T 40%DEPOSIT+60%BALANCE.
Time of payment		When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time		Two years after the Egg tray machine received.
TERMS OF DELIVERY		FOB Qingdao Port, China
Package		In container
Certification		CE
Installation & Training
1. Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and engineer charge USD100/day ) 3.We will dispatch 1 engineer to direct the installation and debugging of the equipment if needed. And the engineer will train the workers on site.

FAQ:
Our productionline has Fully Automatic and Semi Automatic two types , both have computer control system .
1. What is Semi Automatic type ?
If only order The 1st and 2nd compulsory parts , that's Semi Automatic because you'll have to do the work of drying up egg tray manually;
2. What is Fully Automat type ?
Meaning: the production line includes the Drying system and the whole procedure can be done Automatically .
Of course, the price and the required work space would have big difference from the semi-automatic type.
3. Quality
--- Our machines use UK Technics and part of the components are Germany-made (ex: Ball valve) .
-- Our machine is made by Tooling NOT by Welding , insuring a minimum of 10 years' lifespan .
-- The Egg tray moulds material is Aluminium which can keep the fixed shape much better than that made of rubber material.
--- 99.9% of Success rate: Even if there is a failed egg tray , just throw it back to Pulping area and it can be re-used avoiding waste ;
--- Our machine has been sold to worldwide for over 10 years with continued re-order by some customers with their business grow .
4. What kind of material we can use as the raw material?
Any kind of waste paper like old newspaper,magazines,books,A4 paper etc, and easy to get
5. What kind of Fuel can be used for the whole production line?
Coal, natural gas, and dieseal oil.

6. What kind of products can be made by this machine?

All paper package such as paper egg tray, egg carton,egg box, fruit tray, bottle tray, cup tray, consumer product package, medical disposable container etc.

7. Are you a manufacturer?

Yes, Jinan Wanyou has been fabricating pulp molding machine since 2008. We are one of the most important pulp molding machine manufacturer in the world, and we are famous pulp molding machine manufacturer in China, providing high quality and production capacity pulp molding machinery at reasonable prices to the world.
Our Services

(1)Technical consultation ;
(2)Detailed design of customer workshop ;
(3)Installing and testing the whole production line before shipment;
(4)Training engineers and workers;
(5)Supplying spare part for long time;
(6) Online services anytime.
