Helical Cutter Sharpening Machine CNC Grinder Machine for Finishing

Product Description

The name of the machine:CNC bottom diameter grinding machine


Machine tool structure features:

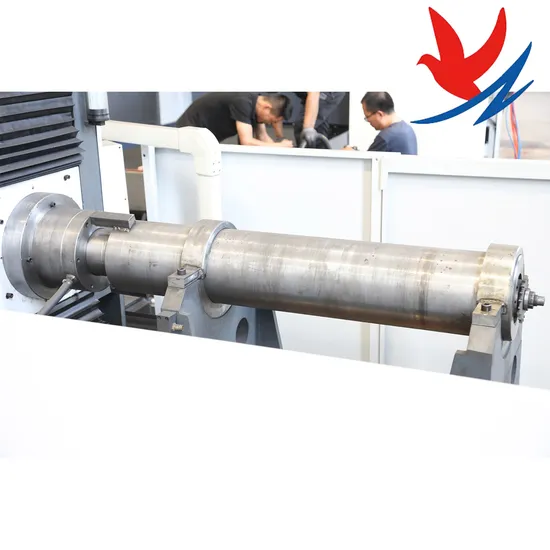

CNC screw grinding machine is a special equipment developed by our company, suitable for grinding screw groove. This machine adopts wide number numerical control system, four axis three linkage.
LGM100×2000 CNC screw grinding machine is the leading variety developed by our company, mainly suitable for grinding screw pump rotor, this machine adopts Guangzhou CNC system, 25IMB-H six axis three linkage (linkage axis C axis, Z axis, X axis), good stability.
1.The machine bed adopts ball linear guide, high rigidity, good wear resistance. High positioning accuracy, fast moving response, low speed feed without crawling phenomenon.
2.All castings of the machine are aging treated to reduce bending and deformation.
3.The hardness of the guide surface of the machine tool is implemented according to the national standard, which is guaranteed to be between 45 and 52 degrees Of Rockwell hardness.
4.Feed axis [Z axis, X axis] adopts high precision ball screw through a wide number of servo motor direct drive, high transmission accuracy, high positioning accuracy.
5.Feeding shaft [X axis] stroke meets the grinding wheel can pass through the center line, to ensure that the bottom diameter of all types of screw can be grinded.
6.Headstock spindle [C axis] transmission mode adopts torque motor (with encoder) direct connection, can effectively ensure the accuracy of indexing.
7.Headstock [C axis] adopts special fixture chuck with thimble.
8.Grinding head [axis A] motor adopts high power motorized spindle, which can realize stepless variable speed and wide speed range.
9.Grinding wheel dressing table adopts cross table assembly and dressing wheel adopts diamond dresser.
10.Dynamic balance should be done before installation of grinding wheel. The grinding wheel clamp is blackened with carbon steel to ensure that it cannot be rusted in use.
11.The feeding mode of tail seat sleeve is hydraulic feeding to facilitate the removal of the workpiece, and the overall feeding mode of tail seat is rack electric feeding to facilitate the operation of operators.
12.Adjustable side bus.
13.The tail seat of the machine tool is equipped with a self-discharging center.
14.The machine is equipped with magnetic separator to achieve lubrication and cooling effect through forced cooling during processing.
15.The electrical components in the machine tool electrical control cabinet are purchased from the well-known domestic brand Delixi brand.
16.The machine should be placed in a constant temperature workshop with a temperature range of 22-26 degrees.
17.Machine tool guide rail lubrication using centralized intermittent special lubrication pump lubrication, lubrication in time.
The company can also make various special machine tools according to user requirements, welcome customers to negotiate work
