Sierra Wireless LTE 4G Modules EM7565 for Global

Product Description

Product Description

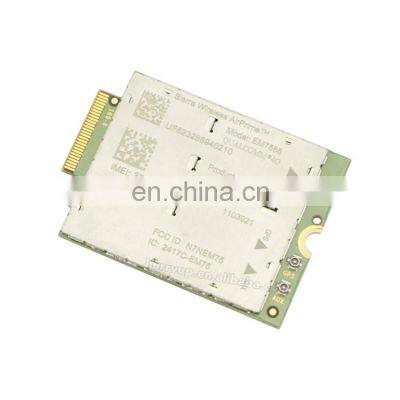

Description• Sierra Wireless AirPrime EM7565 is the first global LTE-Advanced Pro cellular module, enabling the world’s fastest IoT applications for mobile computing, networking, and industrial M2M. Leveraging LTE-LAA and CBRS unlicensed bands and carrier aggregation, this LTE-Advanced Pro Cat-12 embedded module EM7565 delivers up to 600Mbps downlink speed and 150Mbps uplink speed, offering global 4G coverage on a single module. With automatic fallback to 3G networks and integrated GNSS receiver (GPS, GLONASS, Beidou, and Galileo satellite systems supported), the EM7565 is ideal for mobile computing, networking, and industrial M2M applications.• Sierra Airprime EM7565 supports for carrier aggregation and 256 QAM, dramatically improving network performance. The modules provide global LTE coverage on 24 LTE bands with the most carrier certifications in the industry, so businesses can use one module for global 4G networks, simplifying manufacturing and inventory management.• The new embedded modules are the fifth generation of LTE modules from Sierra Wireless, are offered in the PCI Express M.2 form factor, and support secure, authenticated firmware-over-the-air (FOTA) updates. Coupled with the most operator certifications in the industry and network switching capability, Sierra EM7565 allows customers to change their network provider anytime, providing more flexibility in manufacturing. There is a brother model Sierra AirPrime EM7511 which has similar specs as EM7565. Here now, other verndor Telit also released a similar module Telit LM940 with similar specs. Sierra AirPrime EM7565 Technical Specifications:• Form factore: PCI Express M.2• Category: LTE Cat.12• Chipset/Processor: Qualcomm MDM9250• Supported LTE Frequency bands: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66• Supported 3G Frequency bands: B1, B2, B3, B4, B5, B6, B8, B9• Date Rates: peak download rate up to 600Mbps/ peak upload rate up to 150Mbps• Satellite Systems: Galileo, Glonass, GPS, Beidou• Interfaces: USB 3.0, USB 2.0 High Speed, SIM interface x 1 (1.8V/3V)• Control Options: APIs, AT Commands• Dimensions: 42x30x2.3mm• Antenna: Diversity, MIMO, GNSS Bias• Antenna Connectors: Main, Aux/GNSS, GNSS• Temperature Range: -30°C / +70°C '-40°C / +85°C (TBC)• Firmware: Pre-certified firmware, Secure boot• System Drivers: Windows® 8, Windows® 8.1, Windows® 10, Linux Driver: Standard ECM, Android RIL• Planned Carrier AT&T, docomo, Telstra, Verizon, Vodafone• Regulatory: CE, FCC, GCF, IC, NCC, PTCRB• Cloud services: Free Unlimited FOTA upgrades, Connectivity Management option, Device Management option, Application Enablement option• Connectivity: Optional Ready-to-Connect Sierra Wireless embedded SIMWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
