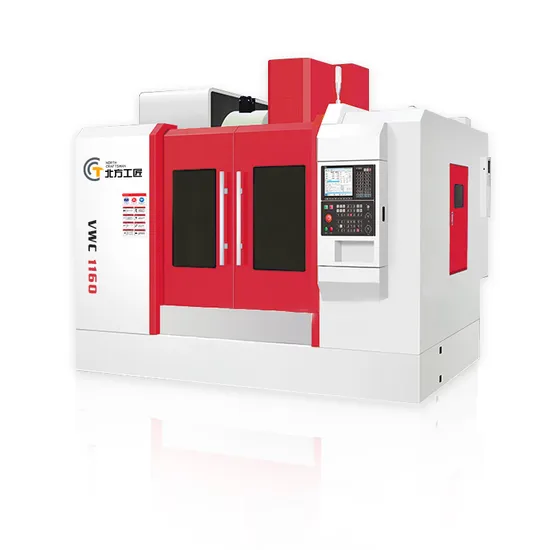

Highly Automated CNC Vertical Machining Center with Tool Magazine and Automatic Tool Changer

Product Description

Product Description

What is CNC Vertical Machine Center?
Vertical Machining Center (VMC) is a machining center in which the spindle axis and the rectangular worktable are set vertically, which is suitable for processing workpieces with high accuracy and precision, even with multiple procedures and complex shapes.
What is CNC vertical machining center? CNC vertical machining center is a type of Computer Numerical Control VMC that has vertically oriented spindles that approach the workpiece mounted on a worktable from above and equipped with a tool magazine system and automatic tool changer.
What is VMC in Machining?
VMC machining refers to machining operations that utilize vertical machining centers (VMCs), which, as the name suggests, have vertically oriented machine tools. These machines are primarily utilized to turn raw blocks of metal, such as aluminum or steel, into machined components.
Product Parameters

Project	Unit	Specification
The X/Y/Z Axis Travel	mm	1100*600*600
Motor Power Of X/Y/Z	Nm	18/18/27
Movement Speed Of X/Y/Z	m/min	36/36/36
Distance(Nose to Workbench)	mm	120-720
Distance from spindle center to column	mm	650
Motor Power Of Spindle	Kw	11/15
Speed Of Spindle	rpm	8000
Taper Of Spindle		BT40
Transmission Of Spindle		Belt Type
Size Of Workbench	mm	1200*600
Max.Capacity of Workbench	Kg	800
T-Slot Size		5-18*100
Capacity Of Tool Magazine	pcs	24T
Accuracy Of X/Y/Z Position	mm	0.005
Accuracy Of X/Y/Z Repeat	mm	0.003/300
Measurement(L*W*H)	mm	2900*2600*2650
Weight	Kg	7500

Detailed Photos

Certifications
Our Advantages

Packaging & Shipping
FAQ
What equipment can you get from our Factory?
* Milling machining center:
*Vertical Machining Center
*Horizontal Machining Center
*Gantry type machining center
*CNC horizontal boring machine
*Horizontal boring machine
*floor type boring machine
*Double head boring machine
* CNC machining part
* CNC Tools
We support customization of the machines you need and provide you with good after-sales service.
