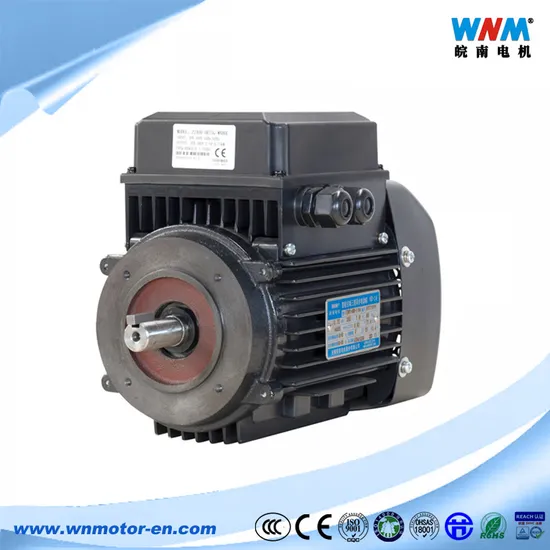

Variable Frequency Induction Motor Smart All-in-One Integrated with VFD Controller AC Motor Electric Motors
| US$90.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YZNP/YZNC
Number of Stator
Three-Phase
Species
YVP Series Frequency Control
Rotor Structure
Squirrel-Cage
Casing Protection
Closed Type
Number of Poles
2.4,6
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC
Brand
Wannan Motor
Frame Size
80-132mm
Output
0.55kw-15.5kw
Efficiency
Ie2
Poles
2, 4
Duty
S1
Insulation
F
Cooling
IC411
Protection Degree
IP55
Voltage
380V, or Customized
Frequency
25Hz-100Hz
Terminal
Top
Frame
Cast Iron
Service Factor
1.0
Mounting Type
Foot, Flange
Ambient Temperature
40°c, 1000 M. a.S.L
Transport Package
Carton/Wooden Case/Pallet
Specification
510*260*355mm
Trademark
WNM
Origin
Jingxian, Anhui, China
HS Code
8501520000
Production Capacity
6000PCS/Day
Product Description
Smart Control Induction Motor--------------------------------------------------------------------------------------------- Applications: Widely used in fans, pumps, compressors, CNC machine tools and other industries. It's in line with the current trend of intelligent development of new products.
General Description Frame sizes: 80 to 132 Rated output: 0.18 to 7.5kW Voltage: 380V Frequency range: 25Hz or 100 Hz Number of poles: 2,4 Insulation class: F Degree of protection: IP55 Efficiency levels: IE2 High Lights:
*Highly -integrated
*Space-Saving
*Independent brand
*Stability
*Reliability
*Perfect Service
*Wide Application
*Attractive Profile
*Compact structure
*Simple operation
Features: These series motor is different from general frequency variable motor. The motor and inverter is highly integrated as an organic whole, with small size, light weight, wide range of frequency conversion, stable performance and other advantages.
The Implication of the Symbol:
| Item | Description | |||
| Basic Control Function | Control | Open-loop vector control(No PG), V/F control | ||
| Max frequency | Vector control:0~300Hz V/F control: 0~3200Hz | |||
| Carrier Frequency | 0.5kHz~16kHz Self-adjust frequency basing on the load characteristic | |||
| Input FREQ Resolution | Digital setting:0.01Hz Analog setting:max frequency×0.025% | |||
| Start Torque | 0.5Hz/150% | |||
| Speed Range | 1:100 | |||
| Steady Speed Accuracy | ±0.5% | |||
| Overload Capacity | 150% rating current 60s;180% rating current 3s. | |||
| Torque Boost | Automatically;Manually 0.1%~30.0% | |||
| V/F Curve | 3 Modes:Linear;Multi-point;N-th power V/F curve(1.2 powers,1.4 powers,1.6 powers,1.8 powers,2 powers) | |||
| V/F Separation | 2 Modes:Total separation,Semi separation | |||
| ACC/DCC Curve | Linear or S curve ACC/DCC PTN. 4 time modes of ACC/DCC (Timer range 0.0~6500.0s) | |||
| DC Brake | DC braking frequency:0.00Hz~Max FREQ Braking time:0.0s~36.0s Braking current:0.0%~100.0% | |||
| JOG Control | JOG FREQ:0.00Hz~50.00Hz. JOG ACC/DCC time range 0.0s~6500.0s. | |||
| PLC,Multi-section speed | Max 16- section speed operation available with built-in PLC or terminal control | |||
| Built-in PID | Process close-loop control system available | |||
| AVR Function | Automatically regulate the voltage to constant output though the changing in the grid voltage. | |||
| Overcurrent / overvoltage stalling | Automatically limit the current and voltage during running to avoid frequent overcurrent /overvoltage trip. | |||
| Current limiting function | Reduce overcurrent malfunction, ensure motor's operation | |||
| TORQ Limitation | Automatically limit the torque during running to avoid frequent overcurrent trip. | |||
| Type | Power kW | Rating Current A | Speed r/min | Eff.% | P.F | Torque N.m | Variable Torque Speed Range | Constant Output Speed Range | Noise dB(A) |
| Rating Synchronous Speed 3000 r/min | |||||||||
| YZNP2-80M1-2 | 0.75 | 1.8 | 2855 | 77.4 | 0.82 | 2.51 | 1500~3000rpm | 3000~3600rpm | 70 |
| YZNP2-80M2-2 | 1.1 | 2.5 | 2870 | 79.6 | 0.83 | 3.66 | 70 | ||
| YZNP2-90S-2 | 1.5 | 3.3 | 2865 | 81.3 | 0.84 | 5.00 | 74 | ||
| YZNP2-90L-2 | 2.2 | 4.7 | 2870 | 83.2 | 0.85 | 7.32 | 74 | ||
| YZNP2-100L-2 | 3 | 6.2 | 2875 | 84.6 | 0.87 | 10.0 | 78 | ||
| YZNP2-112M-2 | 4 | 8.0 | 2910 | 85.8 | 0.88 | 13.1 | 80 | ||
| YZNP2-132S1-2 | 5.5 | 10.9 | 2935 | 87.0 | 0.88 | 17.9 | 83 | ||
| YZNP2-132S2-2 | 7.5 | 14.5 | 2930 | 88.1 | 0.89 | 24.4 | 83 | ||
| Rating Synchronous Speed 1500 r/min | |||||||||
| YZNP2-80M1-4 | 0.55 | 1.4 | 1430 | 79.0 | 0.75 | 3.67 | 750~1500rpm | 1500~1800rpm | 60 |
| YZNP2-80M2-4 | 0.75 | 1.9 | 1425 | 79.6 | 0.76 | 5.03 | 60 | ||
| YZNP2-90S-4 | 1.1 | 2.7 | 1420 | 81.4 | 0.77 | 7.40 | 63 | ||
| YZNP2--90L-4 | 1.5 | 3.5 | 1420 | 82.8 | 0.78 | 10.1 | 63 | ||
| YZNP2-100L1-4 | 2.2 | 5.0 | 1430 | 84.3 | 0.80 | 14.7 | 66 | ||
| YZNP2-100L2-4 | 3 | 6.6 | 1430 | 85.5 | 0.81 | 20.0 | 66 | ||
| YZNP2-112M-4 | 4 | 8.7 | 1450 | 86.6 | 0.81 | 26.3 | 68 | ||
| YZNP2-132S-4 | 5.5 | 11.6 | 1465 | 87.7 | 0.82 | 35.9 | 73 | ||
| YZNP2-132M-4 | 7.5 | 15.5 | 1465 | 88.7 | 0.83 | 48.9 | 73 | ||
| Type | Inverter | Output Power(KW) | Input Current(A) | Output Current(A) |
| YZNP2-80M1-2 | WN60-0.75G-T-4 | 0.75 | 3.8 | 2.5 |
| YZNP2-80M1-4 | ||||
| YZNP2-80M2-4 | ||||
| YZNP2-80M2-2 | WN60-1.5G-T-4 | 1.5 | 5 | 3.7 |
| YZNP2-90S-2 | ||||
| YZNP2-90S-4 | ||||
| YZNP2--90L-4 | WN60-1.5G-T-4 | 1.5 | 5 | 3.7 |
| YZNP2-90L-2 | WN60-2.2G-T-4 | 2.2 | 5.8 | 5 |
| YZNP2-100L1-4 | ||||
| YZNP2-100L-2 | WN60-3.7G-T-4 | 3.7 | 10 | 9 |
| YZNP2-100L2-4 | ||||
| YZNP2-112M-2 | WN60-5.5G-T-4 | 5.5 | 15 | 13 |
| YZNP2-132S1-2 | ||||
| YZNP2-112M-4 | ||||
| YZNP2-132S-4 | ||||
| YZNP2-132S2-2 | WN60-7.5G-T-4 | 7.5 | 20 | 17 |
| YZNP2-132M-4 |
| Motor | Frame | 80 | 90 | 100 | 112 | 132 | 160 | 180 | 200 | 225 | 250 | 280 | 315 | 355 |
| Cooling Fan | (W) Power | 30 | 42 | 52 | 55 | 55 | 80 | 80 | 150 | 200 | 230 | 320 | 700 | 700 |
| (A) Current | 0.09 | 0.16 | 0.18 | 0.18 | 0.19 | 0.26 | 0.30 | 0.6 | 0.6 | 0.6 | 1.1 | 1.8 | 1.9 | |
| Voltage | Standard 380V, but blower of other voltage can be customized depending on user's requirement. | |||||||||||||
| Brake | (N·m) Braking Torque | 7.5 | 15 | 30 | 40 | 80 | 150 | 200 | 300 | 450 | 600 | 850 | 200 | - |
| (W) Excitation Power | 50 | 60 | 80 | 110 | 130 | 150 | 150 | 200 | 200 | 210 | 340 | 400 | - | |
| Excitation Voltage | DC99,DC170 | - | ||||||||||||
| Encoder | Incremental Encoder | |||||||||||||
