Automatic Embossed and Perforated Toilet Tissue Paper Making Glue Lamination Kitchen Towel Paper Rewinding Paper Product Making Machine

Product Description

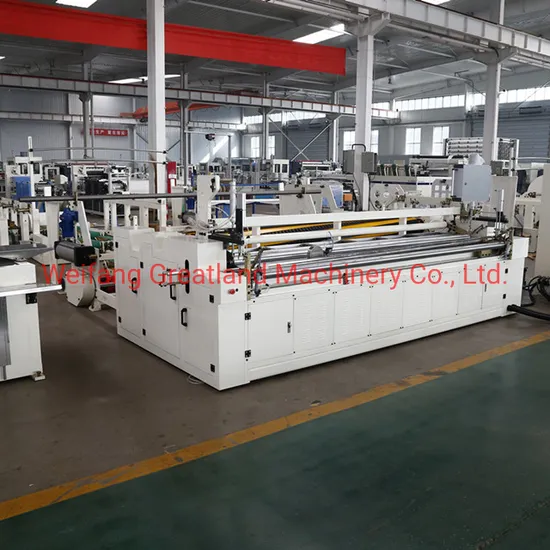

Full Automatic Embossed and Perforated Toilet Paper and Kitchen Towel Paper Machine
1. TECHNICAL PARAMETER
•Jumbo roll specification: Max.Ø2200 X(1350-3500)
•Finished roll specification: Ø 90-300mm(core or coreless as request)
•Embossing function: no embossing, single &double embossing
•Perforation: 10-13cm or as order
•Speed: Max. 260m/min
•Unreeling stand:1-3 layers
•Color printing: no color (normally no color), 1 color or 2colors
•Glue: no glue (normally no glue), color glue or normal glue lamination •Automatic rewinding, embossed, perforated, spraying glue and end sealing
•PLC controlled, pneumatic paper-loading system, perforation pitch adjustment, automatic log output.

Model	1575	1760	1880	2100	2400	2800	3000
Raw paper width	1575mm	2000mm	2100mm	2300mm	2500mm	2850mm	3000mm
Raw paper diameter	Φ1500mm(other specification can be appointed)
Raw paper core diameter	Φ76.2mm(other specification can be appointed)
Parameter setting	HMI
Programming control	PLC
Embossing	No embossing, single embossing, double embossing(to be ordered)
Embossing roller	Felted roller, woolen roller, rubber roller, steel roller(to be ordered)
Working speed	0-260m/min
Final product diameter	90mm-300mm( other specification can be appointed)
Punching	Helix knife punching
Power	4KW-15KW
Side pressing	independent pneumatic(additional order)
Unreeling	1-3 layers
Optional
Glue lamination	No glue, common glue or color glue
Color printing	No color, 1color, 2colors

2. FUNCTION
This machine is used to rewinding toilet paper or bathroom paper. It can rewind the industrial toilet tissue rolls into small rolls (45-135mm) or maxi paper rolls(90-300mm) as customer's request, the embossing function, glue lamination function, color printing function are fully as demand. The toilet rewinder could connect to automatic band saw/log saw and automatic packing machine, really fulfill full automatic tissue paper production and save much human cost. According to customer's workshop space and investment, we can design satisfactory production process and match suitable equipment. This machine is an ideal and core equipment for household paper industry. We have exported to many countries with good feedback.
3. FINISHED PRODUCTS
4. MACHINE DETAILS
5. PACKAGE AND DELIVERY

6. CERTIFICATE

OUR SERVICE
Greatland has professional technical team for installation, commissioning, and related services, also has a very wholesome file system, contacts with the user regularly. Greatland will try best to solve the problems from the customer.
Within the quality guarantee, Greatland settle the problems on site.
ABOUT US
GLM was founded in 2010, and is an integrated company dedicated to the pulp and paper industry associated with planning, design, research, development, producing, delivery, testing and training. Besides, GLM was funded by the Pulp and Paper Design Institute, Pulp Equipment Mill and Paper-making Machinery Company, and in turn gathers together talents from each part. Furthermore, an impressive result has been achieved in recent years.
F&Q
Q.:Are you a factory or trading company?
A.:We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end.Fully check and test takes before shipment.
Q.:Where is your factory located?How can I visit there?
A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly.We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.:One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.
