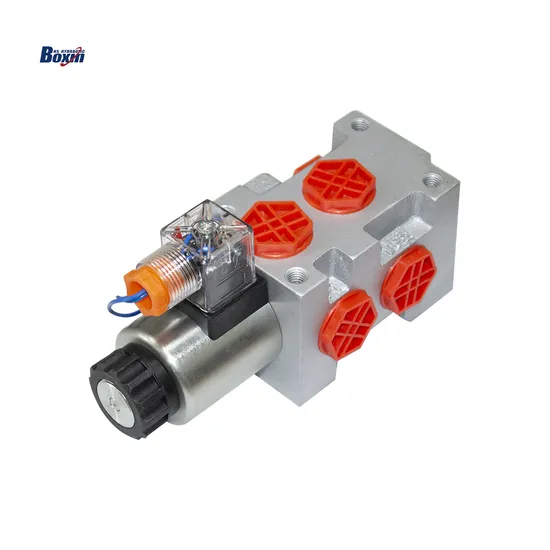

Dvs 12/24V Litters Hydraulic Selector Diverter Valve Solenoid Valve 6/2" 50 L/Min 13 Gpm
| US$23.00-63.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HSV6
Media
Oil
Standard
Standard
Connection Mode
Internal Thread
Power
Hydraulic
Material
Cast Iron
Type
Self-Operated
Name
Hsv6
Customized
Acceptable
Max Flow
40L/Min
Inlet Port
Bsp/Metric/Unf/NPT Thread
Outlet Port
Bsp/Metric/Unf/NPT Thread
Work Port
Bsp/Metric/Unf/NPT Thread
Warranty
1 Year
Control Method
Manual Operaterd
Usage
Agricultural Machines,Sanitation,Drilling Machines
Price
Factory Price
Operating Pressure(Max)
250bar
Transport Package
Foam Mat&Carton&Wooden Tray
Trademark
BOXIN HUASHENG
Origin
Shandong Province, China
HS Code
8481802990
Production Capacity
10, 000, 000/Year
Packaging & Delivery
Package Size
18.00cm * 10.00cm * 12.00cm
Package Gross Weight
3.500kg
Product Description
Product DescriptionHSV series selector valve is capable of switching from one circuit to another at a variety of flow and pressures.It can be connected to the service ports of a directional control valve and used to direct service line flow to and from either of two separte devices.It can also be connected to a pump and direct the flow to either one of two different circuits.
The Hydraulic Solenoid Operated Selector Valves come in both 12VDC and 24VDC. These valves come with a nominal flow of either 50LPM or 90LPM and have a maximum pressure of 315 bar.
.Stack up to 3 sections(at most) (A,B type)
.12V/24V DC optional
.3-pin or 2-pin water-proof plug optional
Specifications:
| parameter | valve |
| Number of Work Sections | from 1 to 3 |
| Max working pressure | 315 bar |
| Operating pressure | 210 bar |
| Rated flow | 50 l / min |
| Working temperature | from -30 ° С to + 50 ° С |
| Fluid viscosity | from 20 to 400 mm 2 / s |
| Fluid temperature | from -20 ° С to + 70 ° С |
| Filtration | Grade 9 NAS1638 |
| Supply Voltage / Power Consumption | 12VDC * / 36W and 24VDC * / 29W |
| Ports size | P1:G1/2; P2:G3/8; P3:7/8-14UNF |
Ordering code
HSV6---X---X---X---X
1 2 3 4 5
1.series code
2.Model type: A/B/C
3.Number of sections:1-3( Model A,B available for stack)
Detailed Photos
Application Area
International Exhibitions
Company Profile
| Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd. | ||||||||
| COMPANY PROFILE | ||||||||
| Established in 2001,Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd. has become one of the biggest manufacturers specializing in hydraulic parts now. As a rising star in China's hydraulic components manufacturing industry in recent years,our company's share in the domestic and foreign markets has been maintained in the forefront. | ||||||||
| With 350 employees,20 engineers and advanced high-technology equipments,our annual output capacity has exceeded 1,200,000 pieces.Main Product contains Directional Control Valves,Gear Pumps,Steering Equipments and Power Units.The kinds of products are more than 500 models. | ||||||||
| The products are widely applied to engineering machinery,agricultural machinery,mining machinery,sanitation machinery,industrial energy,special purpose vehicles,heavy truck dumping,aerial vehicles and other fields,BXHS has become more complete hydraulic parts supporting manufacturers. | ||||||||
| Boxinhuasheng has been partners of Shanghai Lonking Group,Guangxi LiuGong Group,Shandong Lingong Group,Shandong Mingyu Heavy Industry,China YTO Group,ShiFeng Group,Wuzheng Group,CIMC Group,Dayun Group,and other major domestic host enterprises.Meanwihle,our products have been exported to Europe,South America,Southeast Asia,Africa,the Middle East,and other countries and regions. | ||||||||
| Boxinhuasheng has passed the certification of IATF16949 and CE. |
