300Ml Mixer Rubber Torque Rheometer

Product Description

Product Description

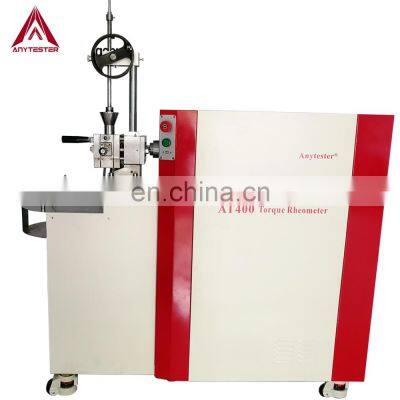

Product DescriptionAT400 Torque Rheometer is a measuring system for studying the flow, plasticizing, heat and shear stability of polymers. This system consists of a platform and some function units, such as the mixer and single-screw or twin-screw extruder. The platform connected with a function unit can measure flow and compounding behaviors, critical processing parameters of temperature, pressure, torque and viscosity of polymers in the laboratory-requiring only small sample volume. Designed to an excellent system with high measuring precision, handling flexibility and testing reproducibility, this instrument has been widely applicable in science research, quality control and process experiment. The whole system is as follows:Specification for platformMotor Panasonic Servo Motor & Driver, 3.0kwSpeed range 0.1~200rpmSpeed accuracy 0.05%F.S.Torque0~150NmTorque accuracy0.1%F.S.Melt pressure range0.1~100MPaMelt pressure accuracy0.5%F.S.Temperature range0~350℃Temperature accuracy ±1℃Temperature channel 5 (4 channels for controlling temperature)Power supply 3phase, AC380V, 50Hz, 30ADetails & FeaturesRotors Banbury, Cam, Delta, Roller, Sigma Rotors optional Mixer with the simplified structure60ml 150ml 300ml Mixer availableInterface of Platform SoftwareTesting reportOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productCertificationsPacking & DeliveryPackagingSize215 (L) * 73 (W) * 135 (D)Weight408KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting UsLily ChengWebsiteWhatsapp+86 180 5517 3820Mob. No+86 180 5517 3820Skype1933039910@qq.comWechat +86 180 5517 3820
